ASTM A192/A192M – Standard Specification for Seamless Carbon Steel Boiler Tubes for High Pressure Service

Scope

This specification covers minimum wall thickness, seamless carbon steel boiler and super heater tubes designed for high-pressure service in stationary boilers, super heaters, and heat exchangers. These tubes are suitable for high temperature and high pressure environments where reliability is critical.

Ordering Information

Purchasers must specify the following when ordering:

l  Quantity (total length or number of tubes)

l  Material (seamless carbon steel boiler tube)

l  Dimensions (nominal outside diameter and minimum wall thickness, in inches [A192] or millimeters [A192M])

l  Length (cut lengths with tolerances or random lengths)

l  ASTM Designation (A192 for inch-pound units, A192M for metric)

l  Testing Requirements (hydro-static test, nondestructive electric test, or expanded flattening test)

l  Certification (if mill test reports are required)

l  Additional Requirements (special marking, heat treatment, or supplementary testing)

 Material & Manufacture

 Steel making Process: Open hearth, electric furnace, or basic oxygen process.

 Manufacturing Method: Tubes are hot-finished or cold-drawn, then stress relieved or annealed to ensure ductility and strength.

 Heat Treatment: Mandatory to meet mechanical property requirements.

Chemical Composition (%)

| Element | Requirement |

| Carbon (C) | 0.06–0.18 |

| Manganese (Mn) | 0.27–0.63 |

| Phosphorus (P) | ≤ 0.035 |

| Sulfur (S) | ≤ 0.035 |

| Silicon (Si) | ≥ 0.10 (for deoxidation) |

Mechanical Properties

| Property | Requirement |

| Tensile Strength | ≥ 325 MPa (47,000 psi) |

| Yield Strength | ≥ 180 MPa (26,000 psi) |

| Elongation (in 2 in./50 mm) | ≥ 35% |

| Hardness (optional) | ≤ 72 HRB (Rockwell B) |

Test Requirements

 Mandatory Tests

 Hydro-static Test: Each tube must withstand a specified water pressure (≥ 70 bar / 1,000 psi for 5 sec) without leakage.

 Nondestructive Electric Test (NDE): If hydro-static testing is waived, eddy current or ultrasonic testing must be performed.

 Optional/Special Tests

 Flattening Test: A sample must flatten to a specified distance without cracking.

 Flaring Test: A cone expansion test to verify ductility (if required).

 Hardness Test: Optional, per agreement.

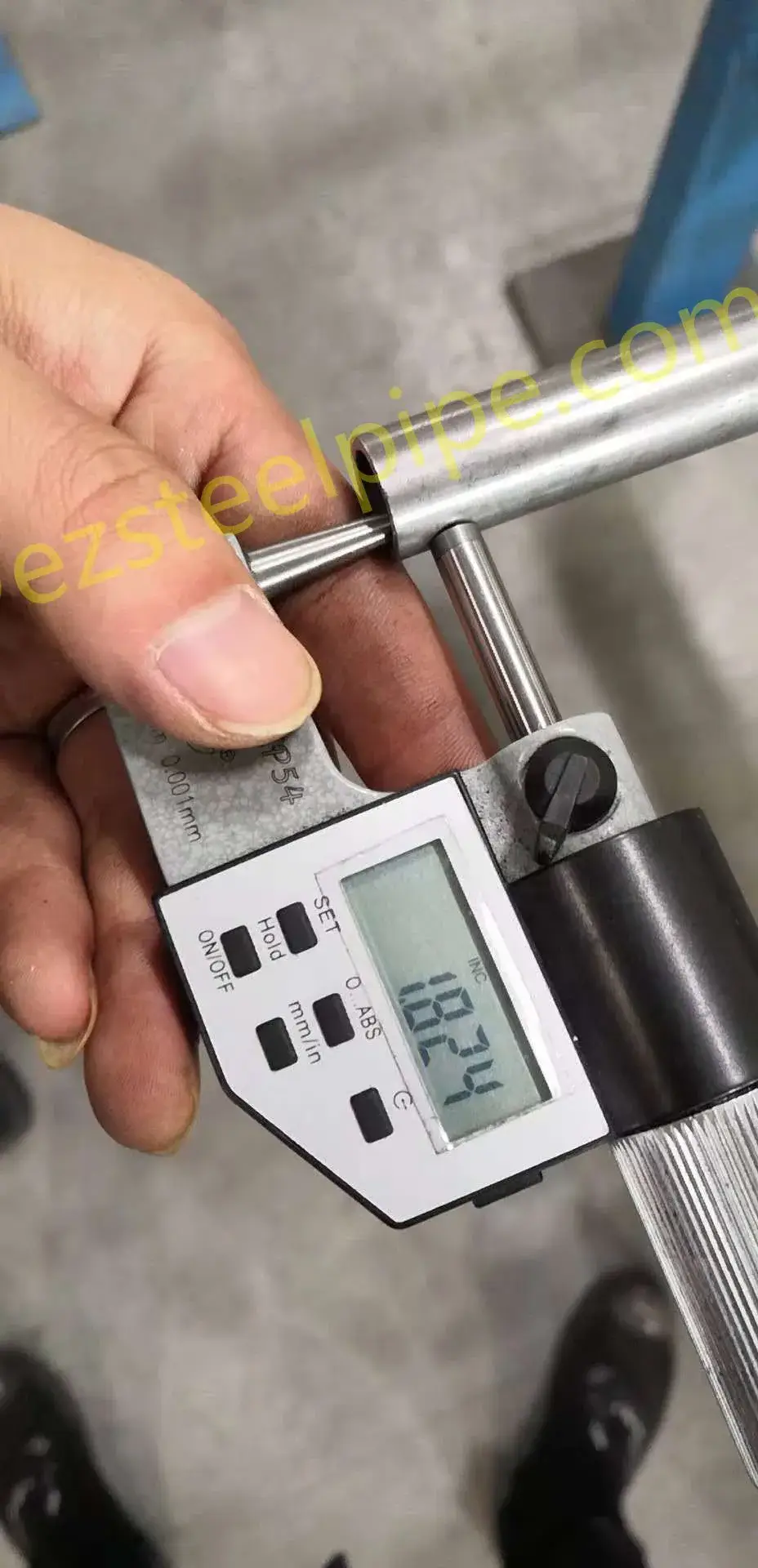

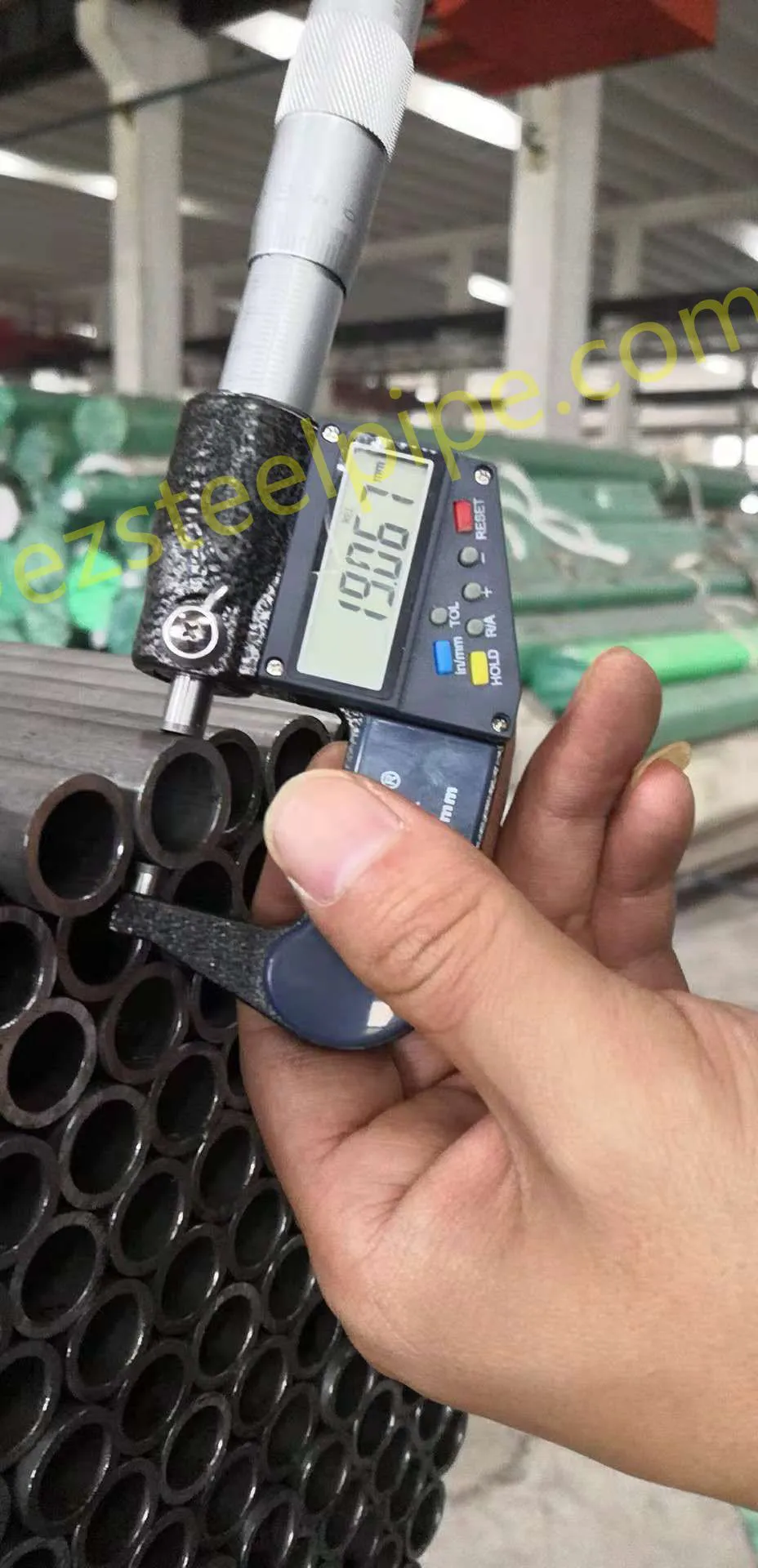

 Dimensions & Tolerances

l  Outside Diameter: Permissible variations (±0.8% for cold-drawn, ±1.0% for hot-finished).

l  Wall Thickness: Must meet minimum requirements with tolerances (±10% for most sizes).

l  Length:

l  Cut lengths: ±3.2 mm (1/8 in.) for lengths ≤ 7.3 m (24 ft).

l  Random lengths: 4.9–12.2 m (16–40 ft).

 Inspection & Certification

 Inspection: Manufacturer performs tests; purchaser may witness or request third-party inspection.

 Certification: Mill test reports (chemical analysis, mechanical properties, and test results) provided upon request.

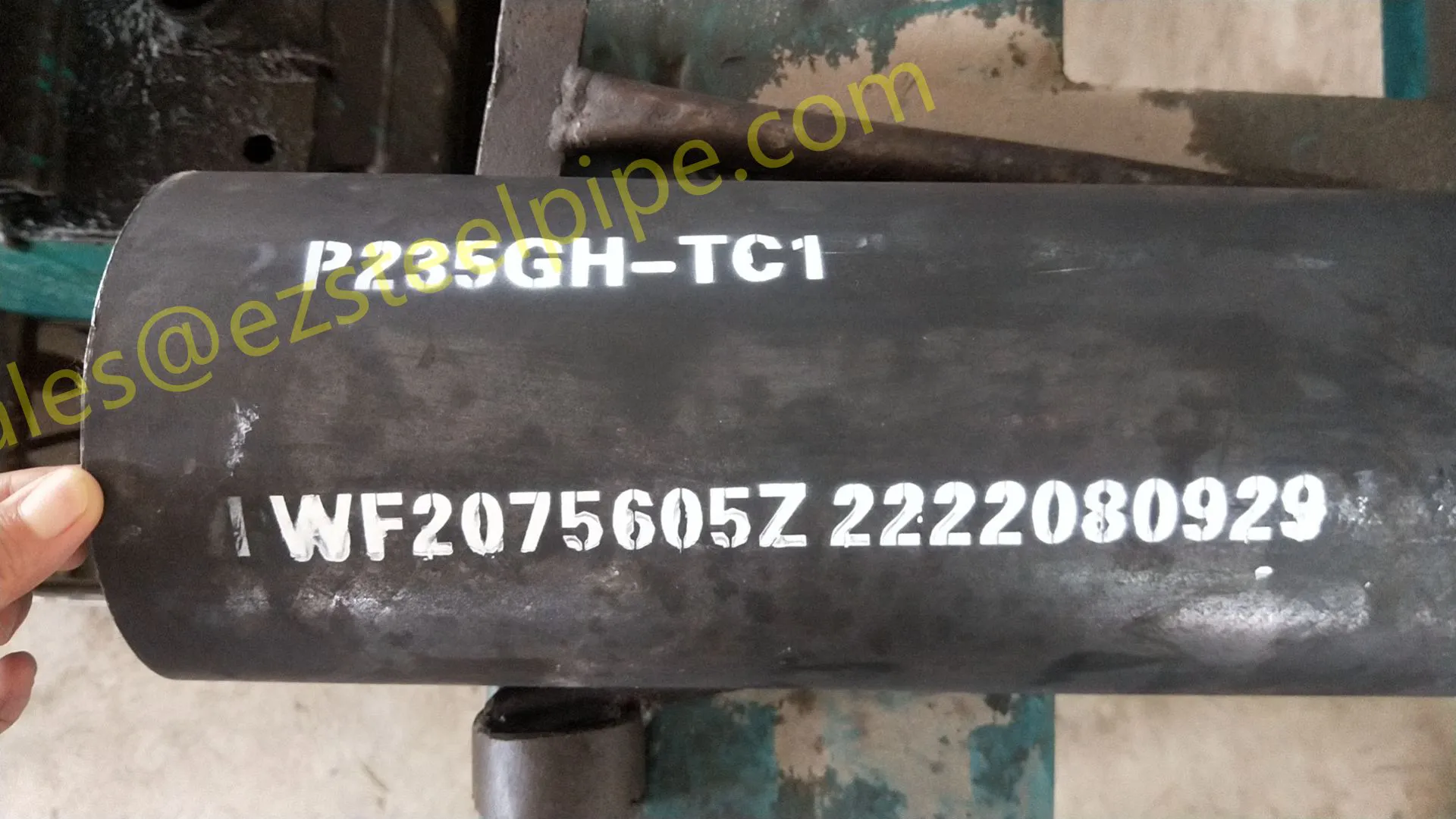

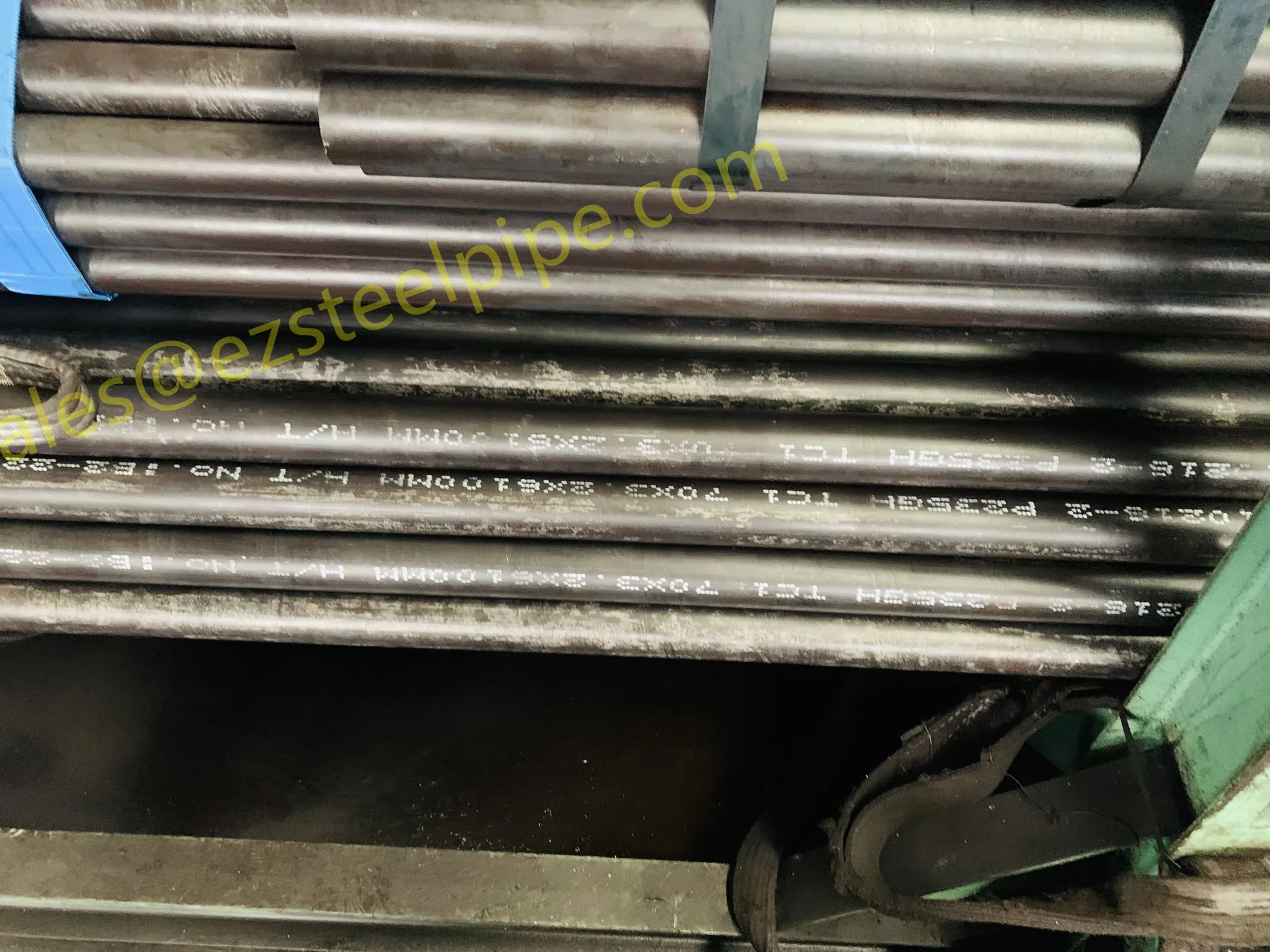

Marking Requirements

Each tube must be marked with:

 ASTM standard (A192/A192M)

 Manufacturer’s name or trademark

 Nominal size (OD and wall thickness)

 Heat number or traceability code

 Keywords

 Seamless carbon steel tubes

 High-pressure boiler tubes

 Super-heater tubes

 Heat exchangers

 ASME Code compliance

 Key Differences from ASTM A179/A179M

 A192/A192M is specifically for high-pressure boilers, while A179/A179M is for heat exchangers/condensers.

 A192 has stricter wall thickness controls due to high-pressure demands.

 A192 requires mandatory heat treatment, while A179 may be supplied as-drawn.

This standard ensures safety and performance in critical high temperature, high pressure applications.
