Finned Tubing for Heat Transfer Efficiency Improving

Finned tubes are essential components in heat transfer equipment, enhancing heat exchange efficiency by increasing the surface area in contact with the fluid (gas or liquid). They are widely used in industries like power plants, refineries, HVAC, and chemical processing. Below is an overview of manufacturing methods and popular types of finned tubes:

Manufacturing Methods of Finned Tubes

Finned tubes are manufactured using different techniques depending on the material, application, and performance requirements:

1. Extruded Fins (Integral Fins)

   - A bimetallic tube (e.g., aluminum outer layer over a steel or copper core) is passed through a machine that extrudes fins from the outer layer.

   - Provides excellent mechanical strength and thermal conductivity.

   - Used in high-temperature applications like heat recovery systems.

2. Wrapped (Spiral) Fins

   - A metal strip (usually aluminum or copper) is helically wound around the base tube and bonded by adhesive, brazing, or welding.

   - Cost-effective and widely used in air-cooled heat exchangers.

   - Not suitable for very high temperatures due to potential bond failure.

3. Embedded (G-Fin) Fins

   - A groove is machined into the tube, and a fin strip is inserted and mechanically locked into place.

   - Good thermal contact and resistance to fin loosening.

   - Common in process heaters and boilers.

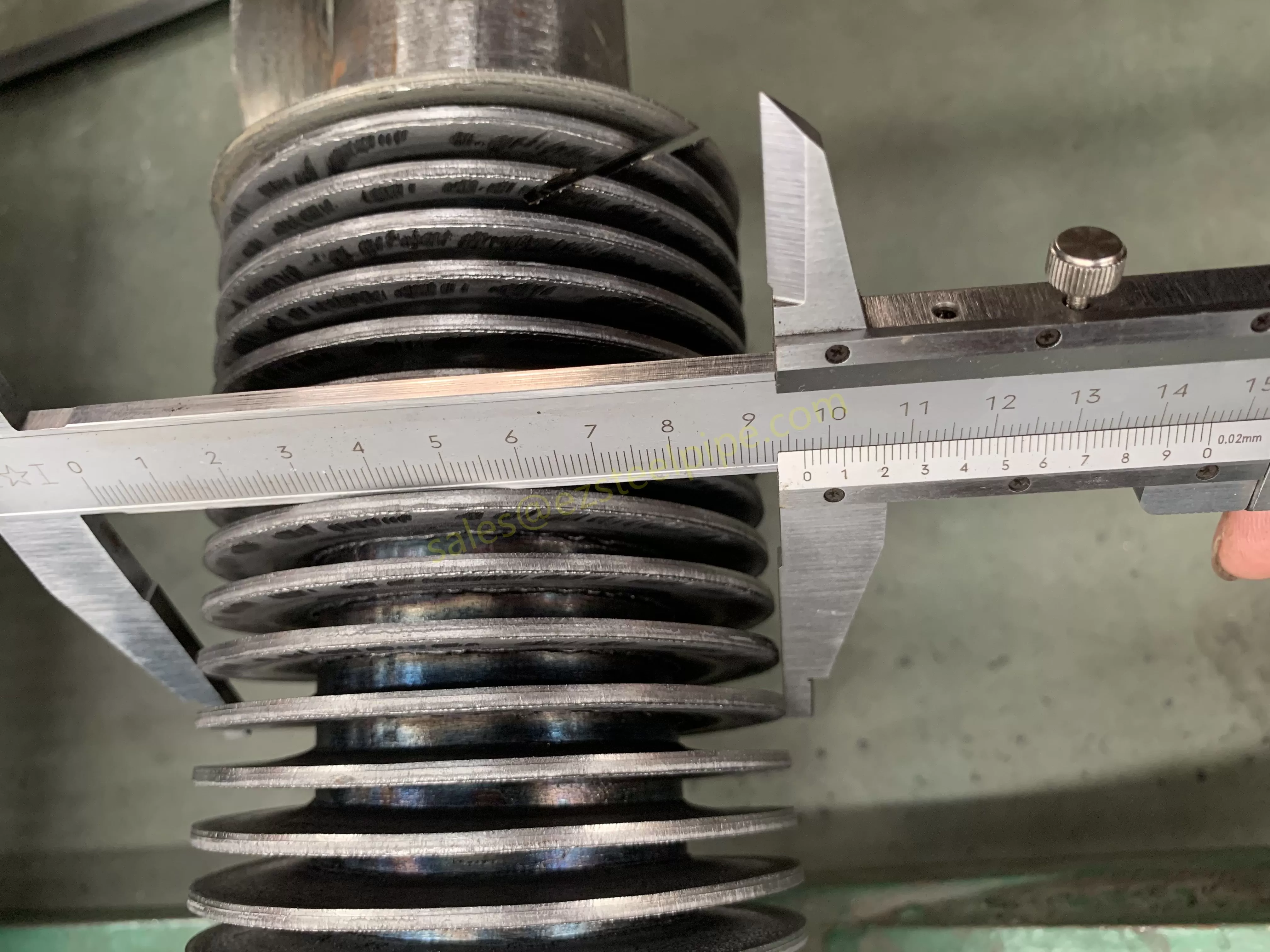

4. Welded Fins

   - Fins are individually welded onto the tube (e.g., L-foot, overlapped, or stud-welded fins).

   - Suitable for high-temperature and high-pressure applications (e.g., economizers, waste heat recovery).

   - More expensive but highly durable.

5. Longitudinal Fins

   - Fins run parallel to the tube axis, used where axial flow is preferred (e.g., in some air coolers and condensers).

   - Often seen in petrochemical applications.

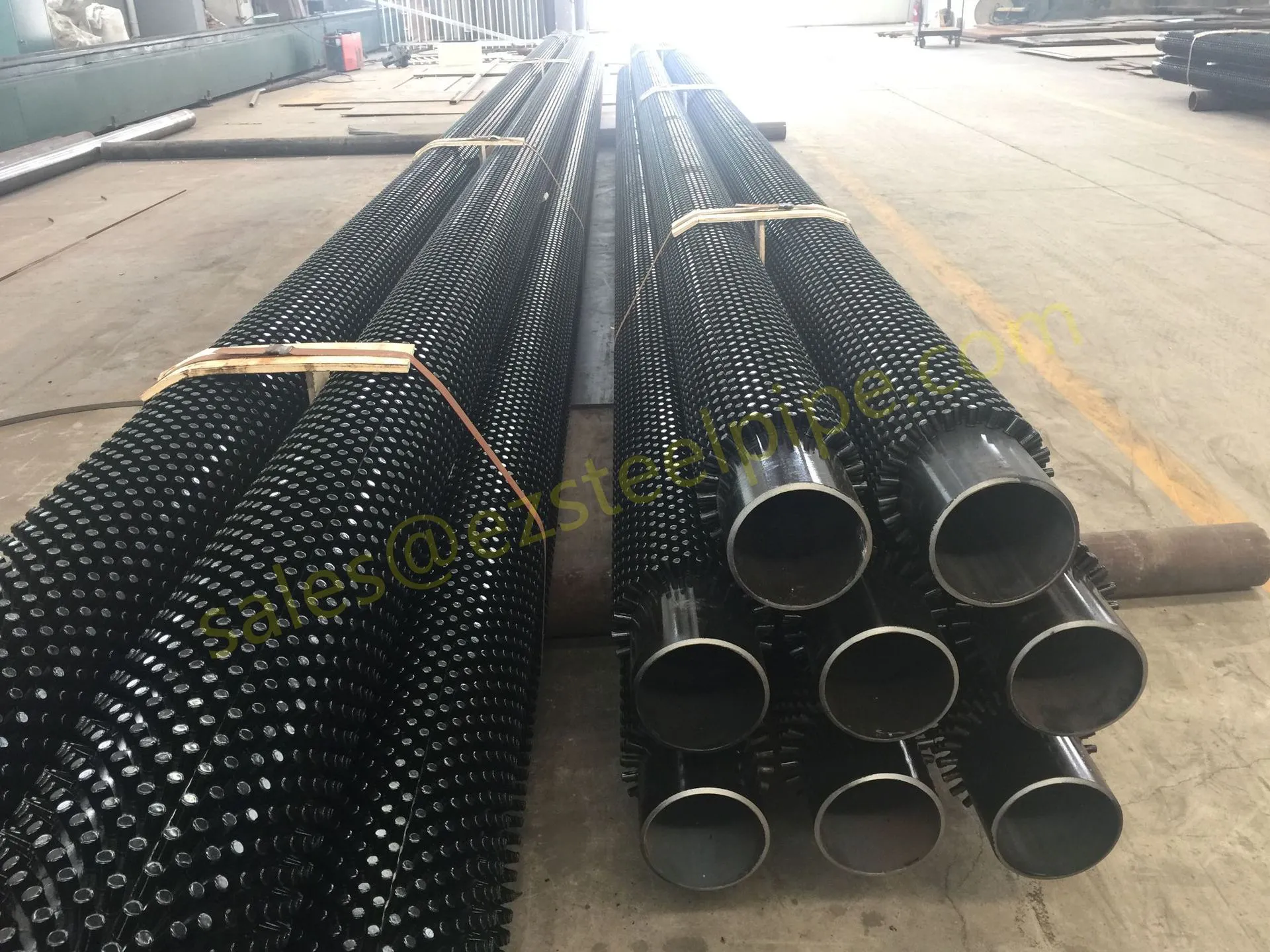

6. Studded Fins

   - Small studs are welded onto the tube surface to increase turbulence and heat transfer.

   - Used in fluidized bed heat exchangers and boilers.

Popular Types of Finned Tubes in Heat Transfer Equipment

1. Helical (Spiral) Fin Tubes

   - Most common type, used in air-cooled heat exchangers (ACHEs).

   - Materials: Aluminum (for corrosion resistance), copper, or stainless steel.

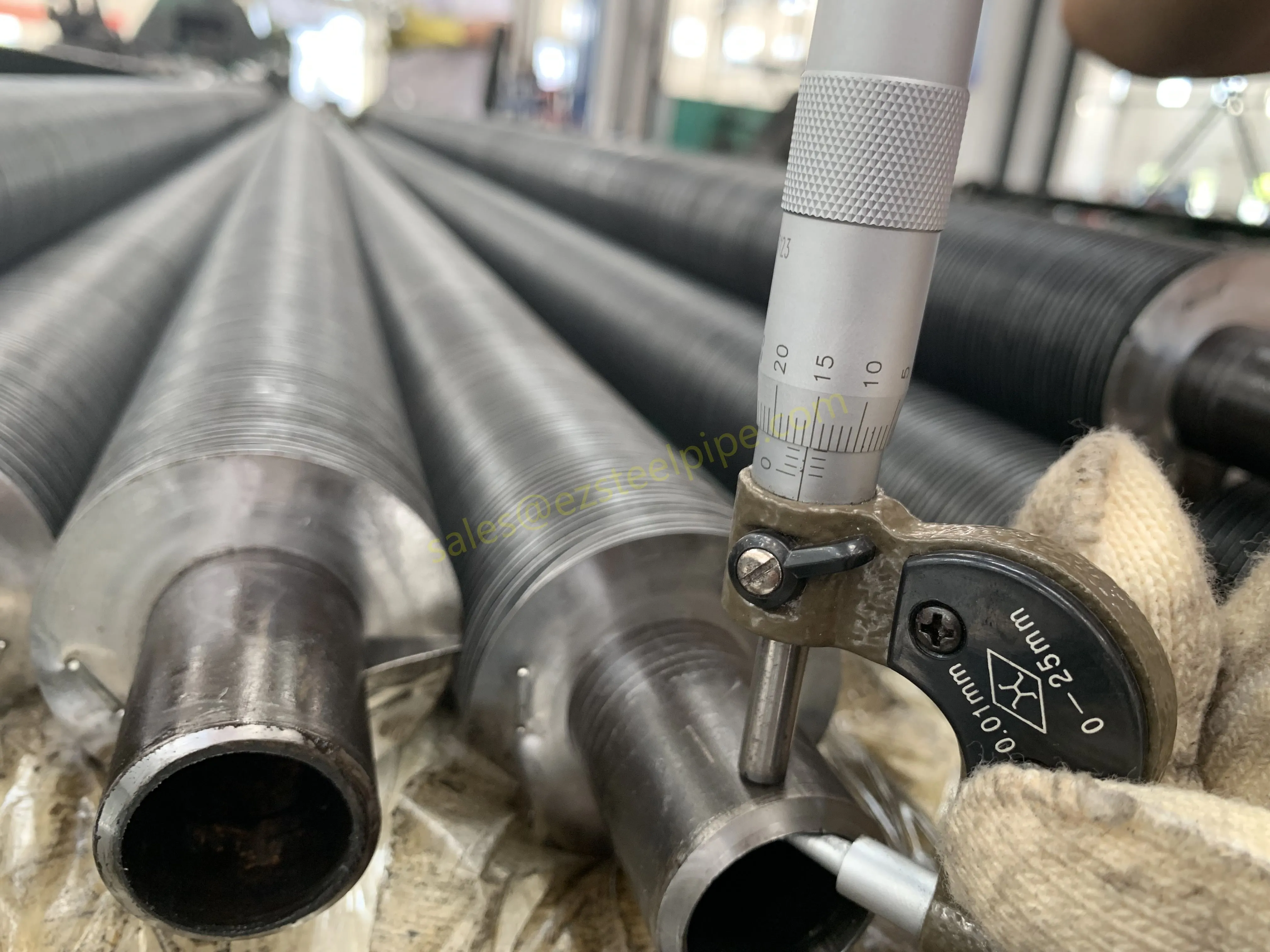

2. Extruded Fin Tubes

   - High thermal efficiency, used in heat recovery steam generators (HRSGs) and economizers.

   - Base tube: Carbon steel / stainless steel; Fin material: Aluminum.

3. L-Foot & LL-Foot Finned Tubes

   - Fins have an "L" shape at the base for better bonding.

   - Used in refinery and power plant applications.

4. Serrated Fins

   - Fins have cuts to enhance turbulence and heat transfer.

   - Used in gas-to-gas heat exchangers.

5. Knurled Fin Tubes

   - Surface roughening improves heat transfer in condensers and evaporators.

6. Corrugated Fin Tubes

   - Wavy fins increase surface area and turbulence, improving efficiency.

Selection Factors for Finned Tubes

- Temperature & Pressure: High-temp applications need welded or extruded fins.

- Corrosion Resistance: Aluminum fins for acidic environments, stainless steel for harsh conditions.

- Fluid Type: Gas-side fins need higher surface area (helical/serrated), while liquid-side may use low-fin tubes.

- Cost: Wrapped fins are economical, while extruded/welded fins are pricier but more durable.

Applications

- Power Plants: Air-cooled condensers, HRSGs.

- Oil & Gas: Preheaters, furnaces.

- HVAC: Chillers, radiators.

- Chemicals: Waste heat boilers, reactors.

Finned Tube and Fin Material Optimization

The choice of materials for finned tubes in heat transfer equipment depends on factors like temperature, pressure, corrosion resistance, thermal conductivity, and cost. Below are the most popular steel and metal materials used for finned tubes, categorized by base tube materials and fin materials:

1. Base Tube Materials (Core Tube)

The base tube carries the primary fluid (liquid/gas) and must withstand pressure, temperature, and corrosion.

Carbon Steel (CS)

- Grades: ASTM A179, A192, A210 (for boilers & heat exchangers)

- Pros: Low cost, good strength, suitable for high-pressure applications.

- Cons: Prone to corrosion; often used with protective coatings or when the environment is non-corrosive.

- Applications: Boilers, economizers, steam condensers.

Stainless Steel (SS)

- Grades:

  - 304/304L – General-purpose, good corrosion resistance.

  - 316/316L – Better resistance to chlorides and acids (used in chemical plants, marine environments).

  - 321/347 – Stabilized grades for high-temperature applications (e.g., exhaust gas heat recovery).

- Pros: Excellent corrosion resistance, high-temperature strength.

- Cons: Expensive, lower thermal conductivity than carbon steel.

- Applications: Refineries, chemical processing, food industry.

Alloy Steels (High-Temperature & Corrosion Resistance)

- Grades:

  - T5 (P5), T9 (P9), T11 (P11) – Chrome-molybdenum steels for high-temperature steam services.

  - T22 (P22), T91 (P91) – Used in power plants for superheaters and heat recovery systems.

- Pros: High creep resistance, good for extreme heat (up to 600°C+).

- Cons: Higher cost than carbon steel.

Copper & Copper Alloys

- Grades: C12200 (Phosphorus deoxidized copper), C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30).

- Pros: Excellent thermal conductivity, good for low-temperature applications.

- Cons: Soft, prone to erosion in high-velocity fluids.

- Applications: HVAC, refrigeration, condensers.

Nickel Alloys (For Extreme Conditions)

- Grades:

  - Inconel 600/625 – High resistance to oxidation and chlorides.

  - Monel 400 – Resistant to seawater and acidic environments.

- Pros: Superior corrosion resistance, high-temperature strength.

- Cons: Very expensive.

- Applications: Offshore oil & gas, chemical reactors.

2. Fin Materials

Fins enhance heat transfer and must balance thermal conductivity, corrosion resistance, and cost.

Aluminum (Most Common for Fins)

- Pros:

  - High thermal conductivity.

  - Lightweight, corrosion-resistant (forms protective oxide layer).

- Cost-effective compared to copper or stainless steel.

- Cons: Low melting point (~660°C), not suitable for very high temps.

- Applications: Air-cooled heat exchangers (ACHEs), radiators.

Copper (High Conductivity)

- Pros: Best thermal conductivity, good for low-temperature applications.

- Cons: Expensive, prone to oxidation in moist environments.

- Applications: Refrigeration, condensers.

Stainless Steel (For Harsh Environments)

- Grades: SS 304, 316, 321 (same as base tube grades).

- Pros: Corrosion-resistant, durable at high temperatures.

- Cons: Lower thermal conductivity than Al/Cu.

- Applications: Chemical plants, waste heat recovery.

Carbon Steel (Low-Cost Option)

- Pros: Cheap, strong.

- Cons: Rusts easily unless galvanized or coated.

- Applications: Low-corrosion environments, industrial heaters.

Bimetallic Fins (Best of Both Worlds)

- Example: Aluminum fins on a carbon steel or stainless steel tube.

- Pros: Combines Al’s conductivity with steel’s strength.

- Applications: Power plants, heat recovery steam generators (HRSGs).

Material Selection Guide

| Application               | Recommended Base Tube | Recommended Fin Material |

| Air-cooled heat exchangers | Carbon steel / SS 304    | Aluminum (most common)      |

| Boilers & economizers      | Carbon steel (A192, P11) | Carbon steel / SS             |

| Chemical plants            | SS 316 / Nickel alloys   | SS 316 / Aluminum           |

| Refrigeration & HVAC       | Copper                   | Copper / Aluminum      |

| High-temp exhaust gas      | SS 321 / Inconel        | SS 321 / High-alloy steel   |

Key Considerations When Choosing Materials

1. Temperature:

   - < 200°C: Aluminum fins work well.

   - 200°C–500°C: Stainless steel fins.

   - > 500°C: High-alloy steels (T22, T91) or Inconel.

2. Corrosion Environment:

   - Marine/offshore: Cu-Ni or Monel.

   - Acidic/chemical: SS 316 or nickel alloys.

3. Thermal Conductivity Needs:

   - Best: Copper > Aluminum > Carbon Steel > Stainless Steel.

4. Cost vs. Performance:

   - Aluminum fins on carbon steel tubes offer a good balance.

   - Nickel alloys are used only when absolutely necessary.
