Carbon Steel, Stainless Steel and Carbon Alloy Steel Flanges

Pipe flanges are critical components used to connect pipes, valves, pumps, and other equipment in piping systems. They are available in various materials, including carbon steel, stainless steel, and alloy steel, each offering distinct properties for different applications. Below is an introduction to these flange types, including their size ranges, manufacturing standards, and key features.

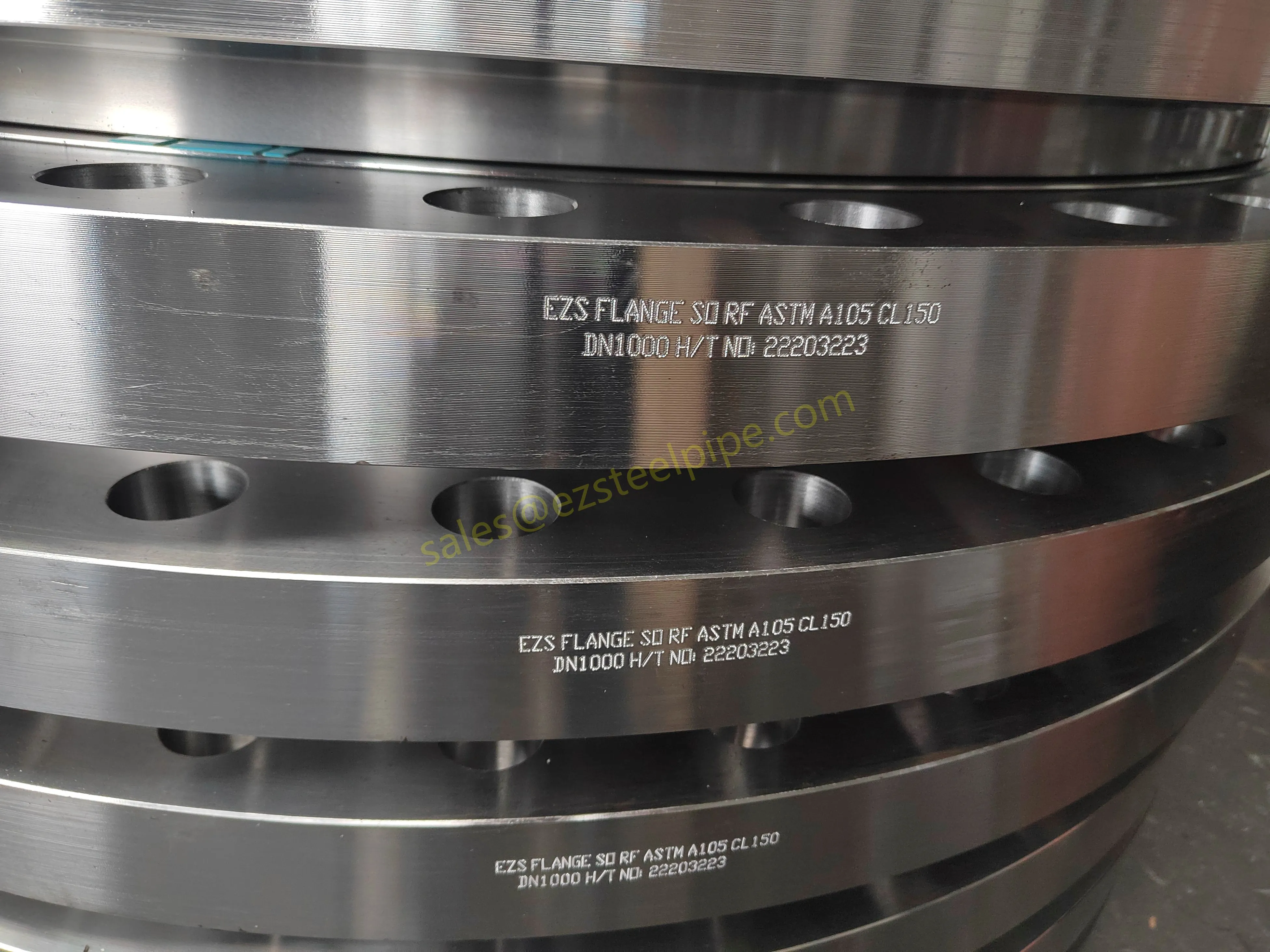

 1. Carbon Steel Flanges

Material Grades:

- ASTM A105 (Forged carbon steel for high-temperature service)

- ASTM A350 LF1/LF2/LF3 (Low-temperature carbon steel)

- ASTM A694 F42-F80 (High-yield carbon steel for pipeline applications)

Size Range:

- Diameter: ½" to 60" (or larger for custom orders)

- Pressure Ratings: Class 150 to Class 2500 (ASME B16.5), PN 2.5 to PN 400 (EN 1092-1)

Key Standards:

- ASME B16.5 (Pipe flanges up to 24" NPS)

- ASME B16.47 (Large-diameter flanges, Series A & B)

- EN 1092-1 (European standard for PN-rated flanges)

- MSS SP-44 (Steel pipeline flanges)

Applications:

- Oil & gas pipelines

- Petrochemical plants

- Power generation (non-corrosive environments)

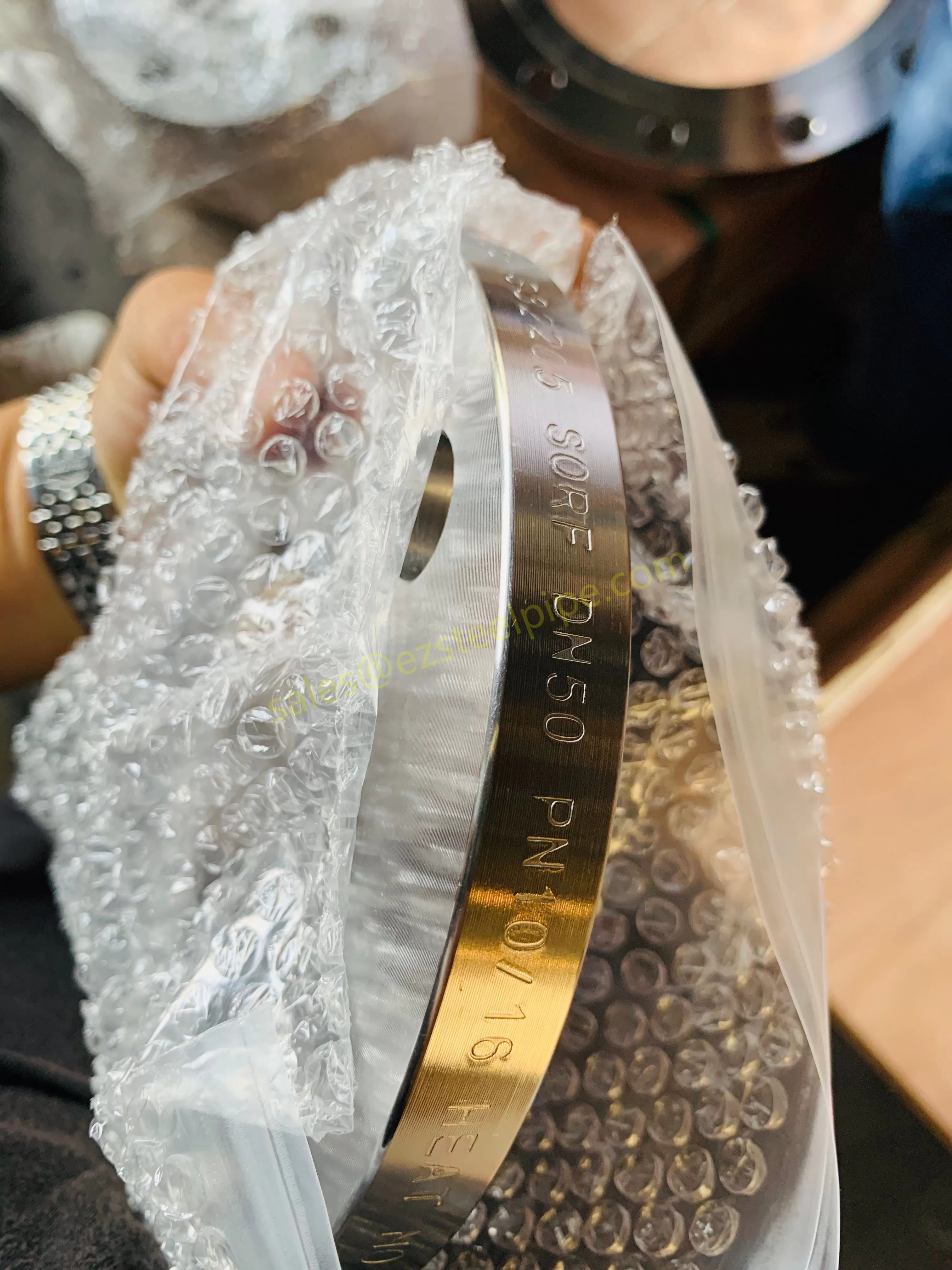

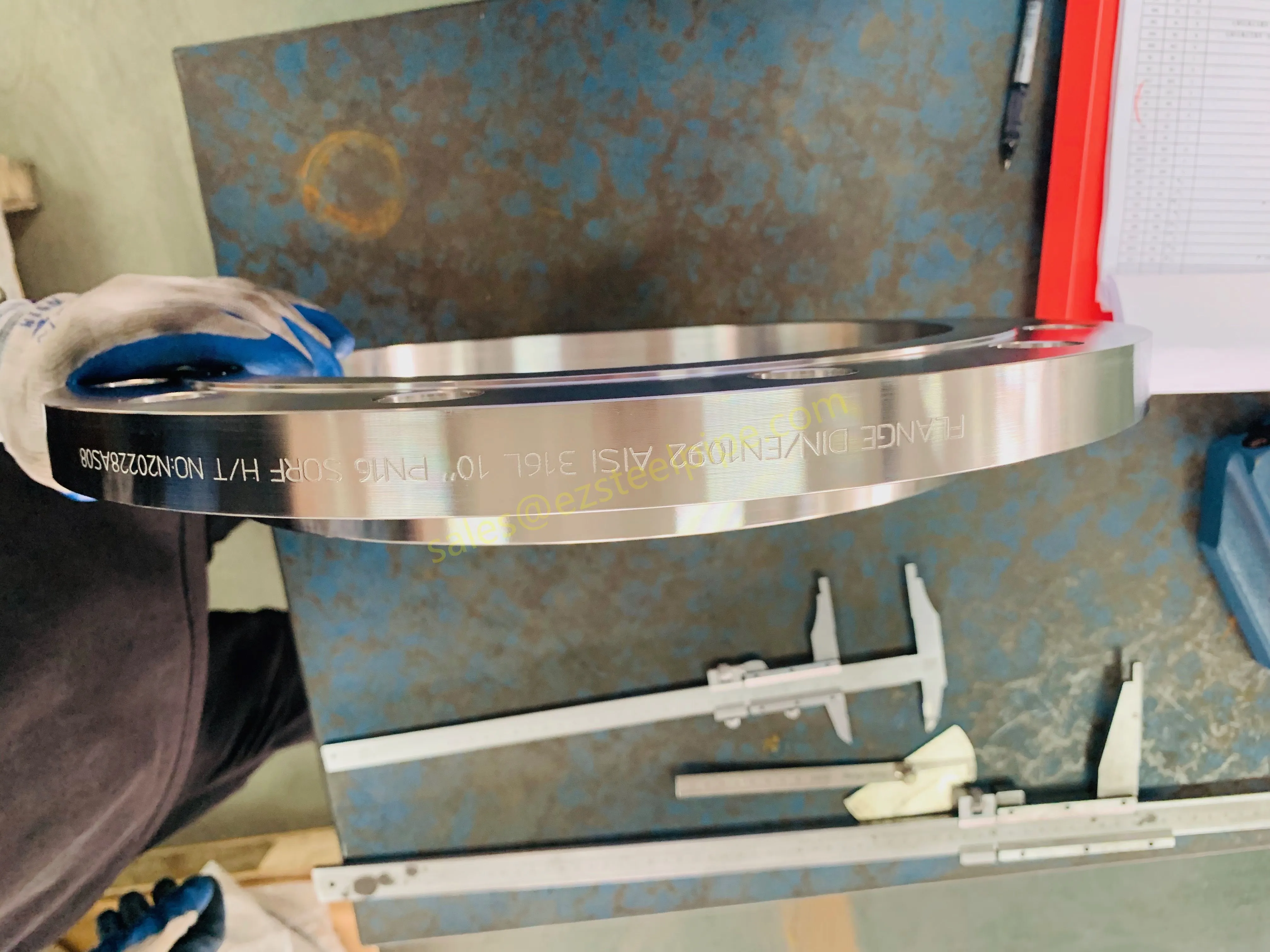

 2. Stainless Steel Flanges

Material Grades:

- Austenitic: ASTM A182 F304/304L, F316/316L, F321

- Duplex/Super Duplex: ASTM A182 F51 (2205), F53 (2507)

- Martensitic: ASTM A182 F6a (410)

Size Range:

- Diameter: ½" to 48" (standard), larger sizes available

- Pressure Ratings: Class 150 to Class 2500 (ASME B16.5), PN 6 to PN 100 (EN 1092-1)

Key Standards:

- ASME B16.5 / B16.47 (Standard and large-diameter flanges)

- EN 1092-1 (European PN/DIN flanges)

- API 6A (Wellhead and Christmas tree flanges for oilfields)

Applications:

- Chemical processing

- Food & pharmaceutical industries

- Marine and corrosive environments

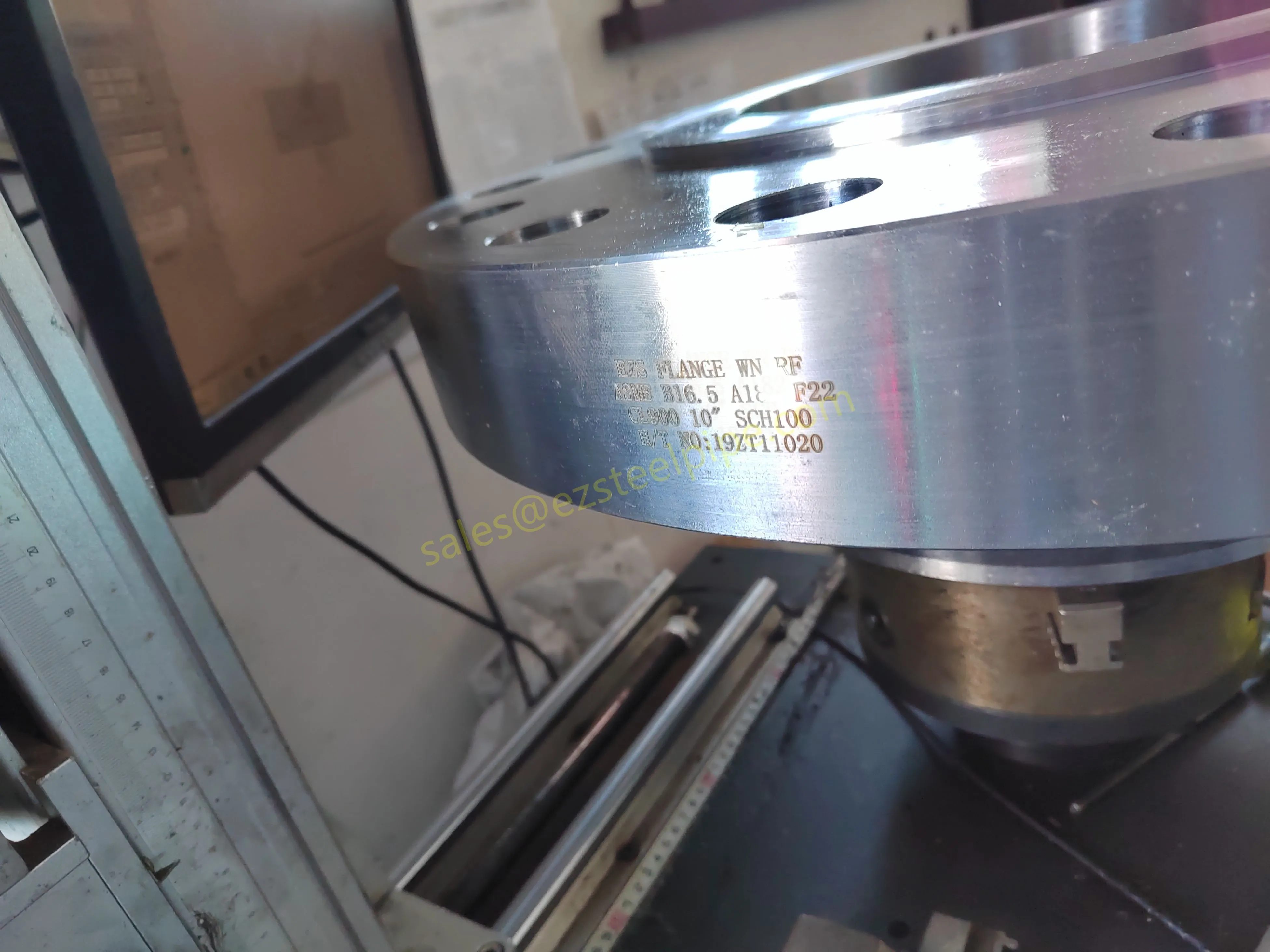

 3. Alloy Steel Flanges

Material Grades:

- Chromium-Molybdenum (Cr-Mo): ASTM A182 F11, F22, F91 (high-temperature service)

- Nickel Alloys: ASTM B564 (Inconel 625, Monel 400, Hastelloy C276)

- Low-Temp Alloys: ASTM A522 (for cryogenic applications)

Size Range:

- Diameter: ½" to 48" (standard)

- Pressure Ratings: Class 150 to Class 2500

Key Standards:

- ASME B16.5 / B16.47

- ASTM A182 (Forged alloy flanges)

- NACE MR0175 (For sour service in oil & gas)

Applications:

- High-temperature/pressure steam systems (power plants)

- Refineries and sour gas pipelines

- Cryogenic storage (LNG)

 Manufacturing Processes:

- Forging (ASTM A105, A182) – High strength, preferred for critical applications.

- Casting (ASTM A216 WCB) – Economical for large sizes but less robust than forged flanges.

- Plate Cutting (ASME B16.48 for spectacle blinds) – Used for slip-on and blind flanges.

 Common Flange Types:

- Weld Neck (WN) – High integrity for high-pressure systems.

- Slip-On (SO) – Easy alignment, lower cost.

- Blind (BL) – Used to seal pipe ends.

- Socket Weld (SW) – For small-diameter, high-pressure piping.

- Lap Joint (LJ) – Used with stub ends for easy disassembly.
