Pipeline Works
For more details on specific carbon and alloy steel tubing and pipes, please refer to the specific product details or contact us at your convenience.
description

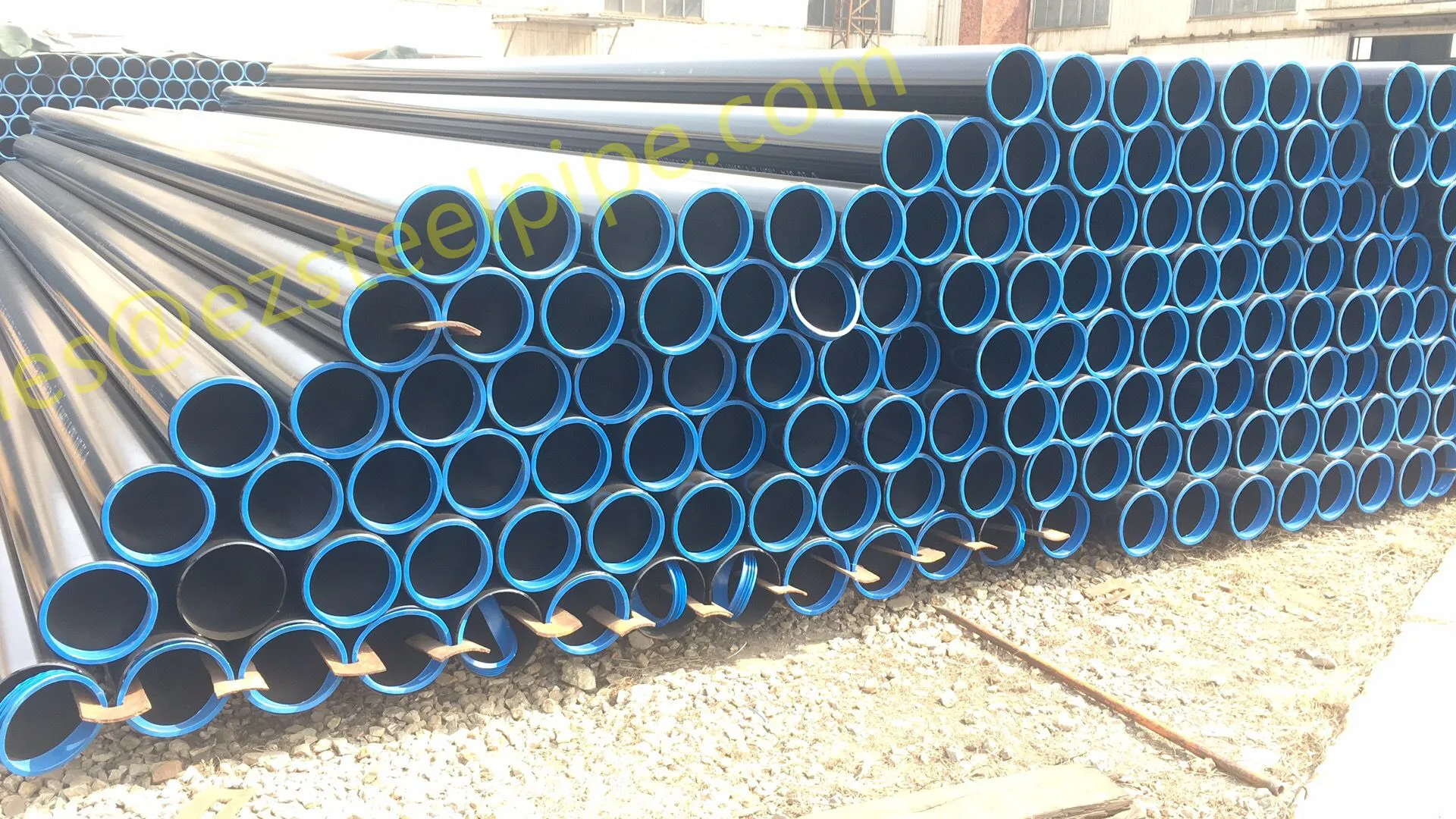

Carbon & Alloy Steel Pipes for Pipeline Purpose

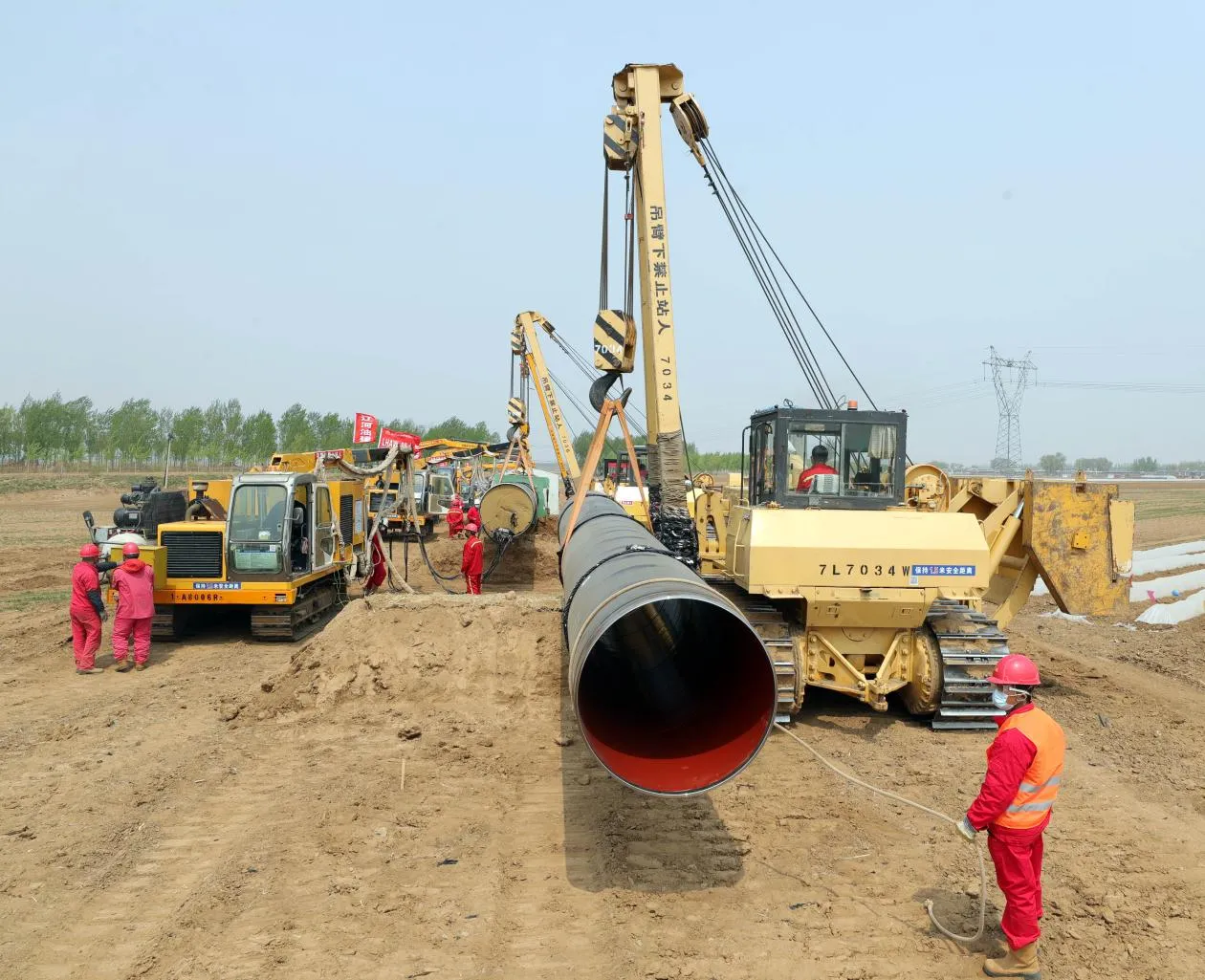

(Pipeline Installation Project Site in Liaohe City, North China)

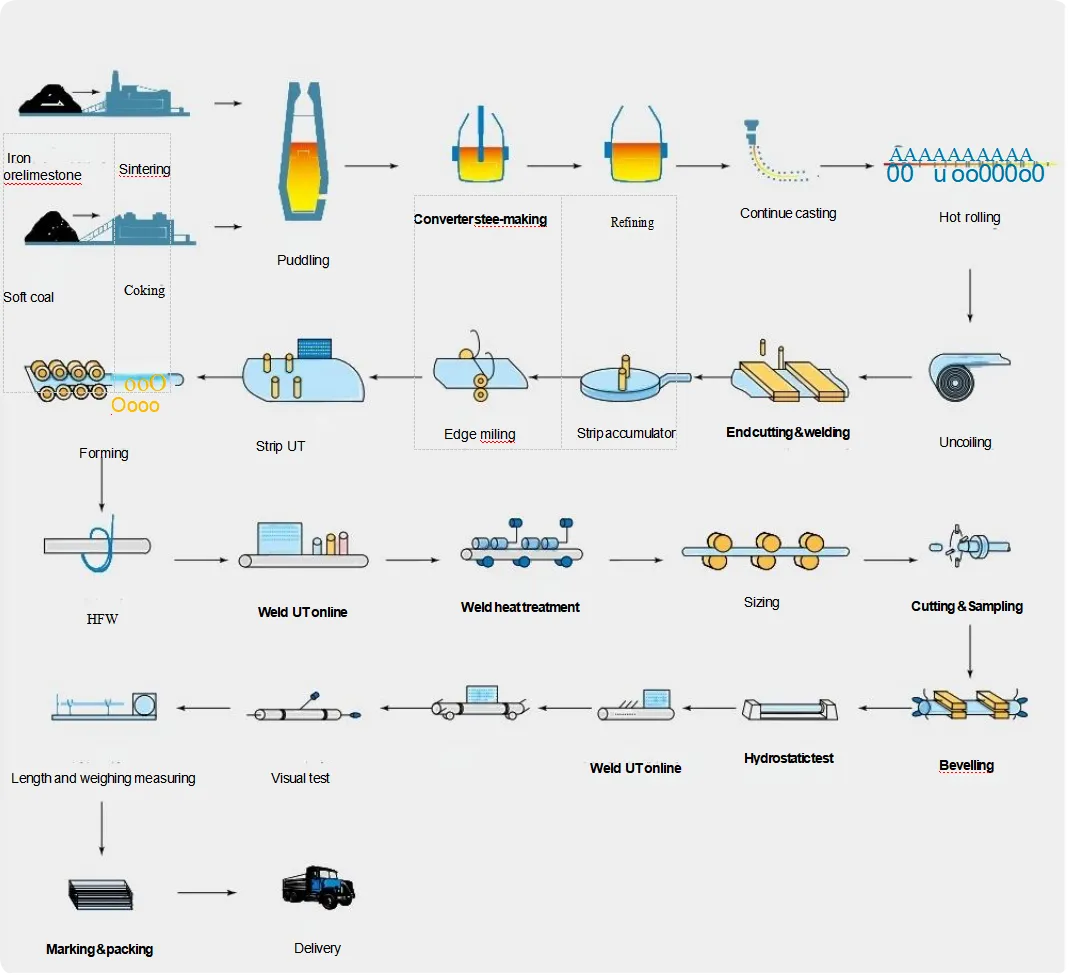

1. Process Flowchart (ERW/HFW pipes)

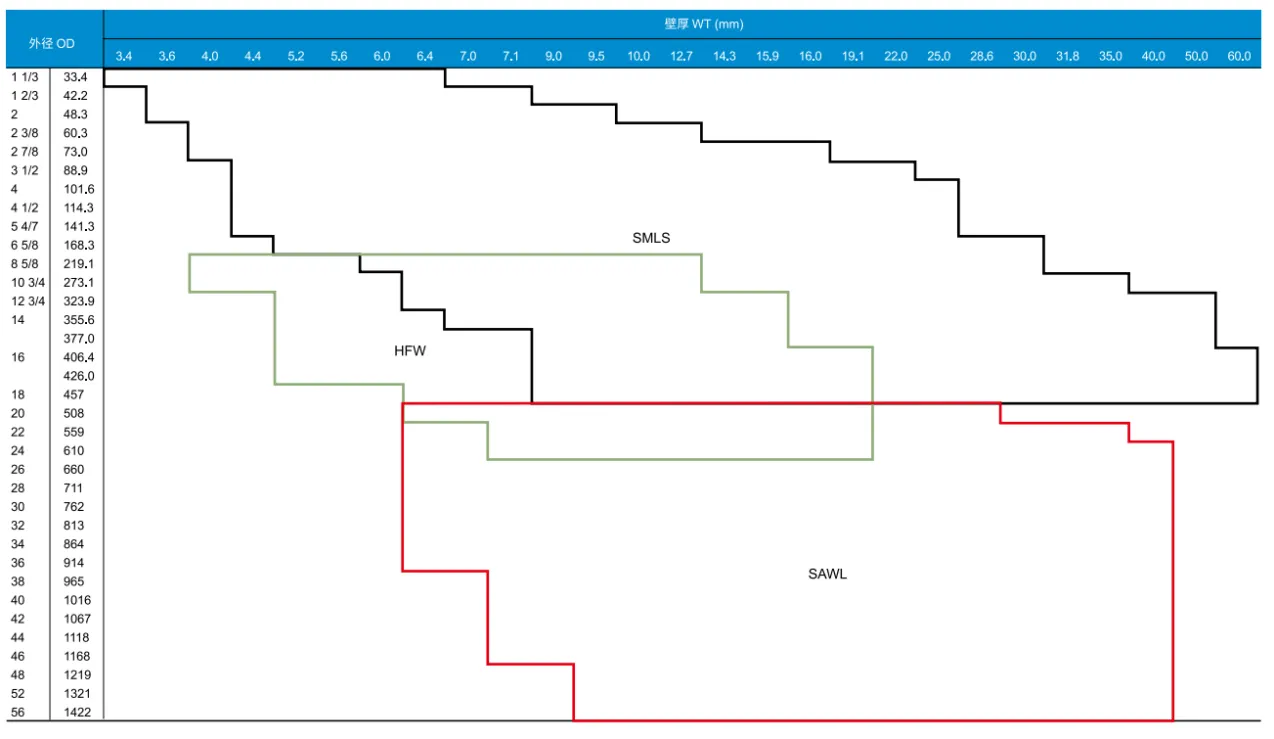

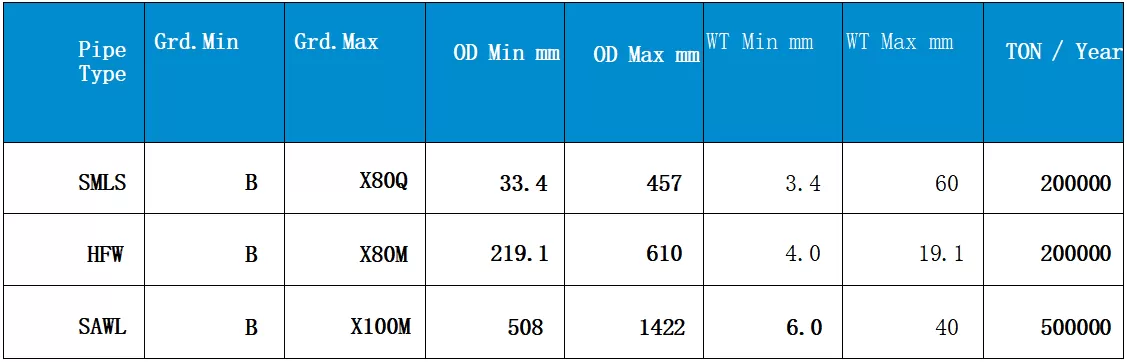

2. Options & Range

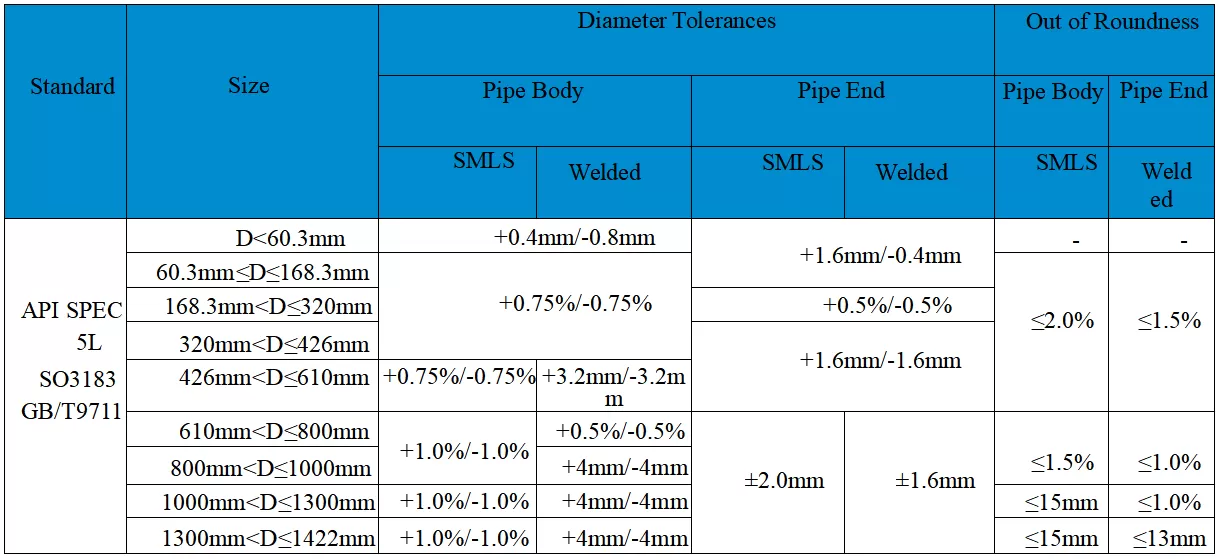

3. Tolerance on Out Diameter

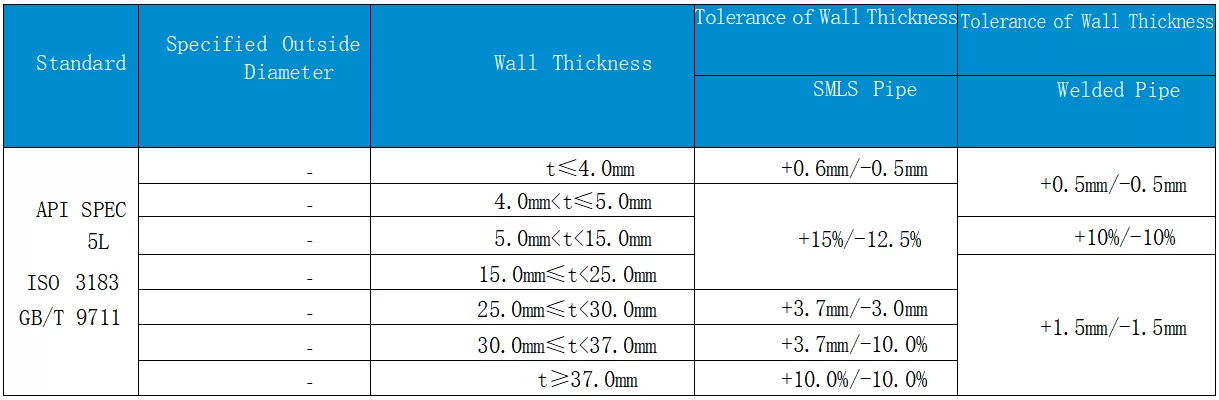

4. Tolerance on Wall Thickness

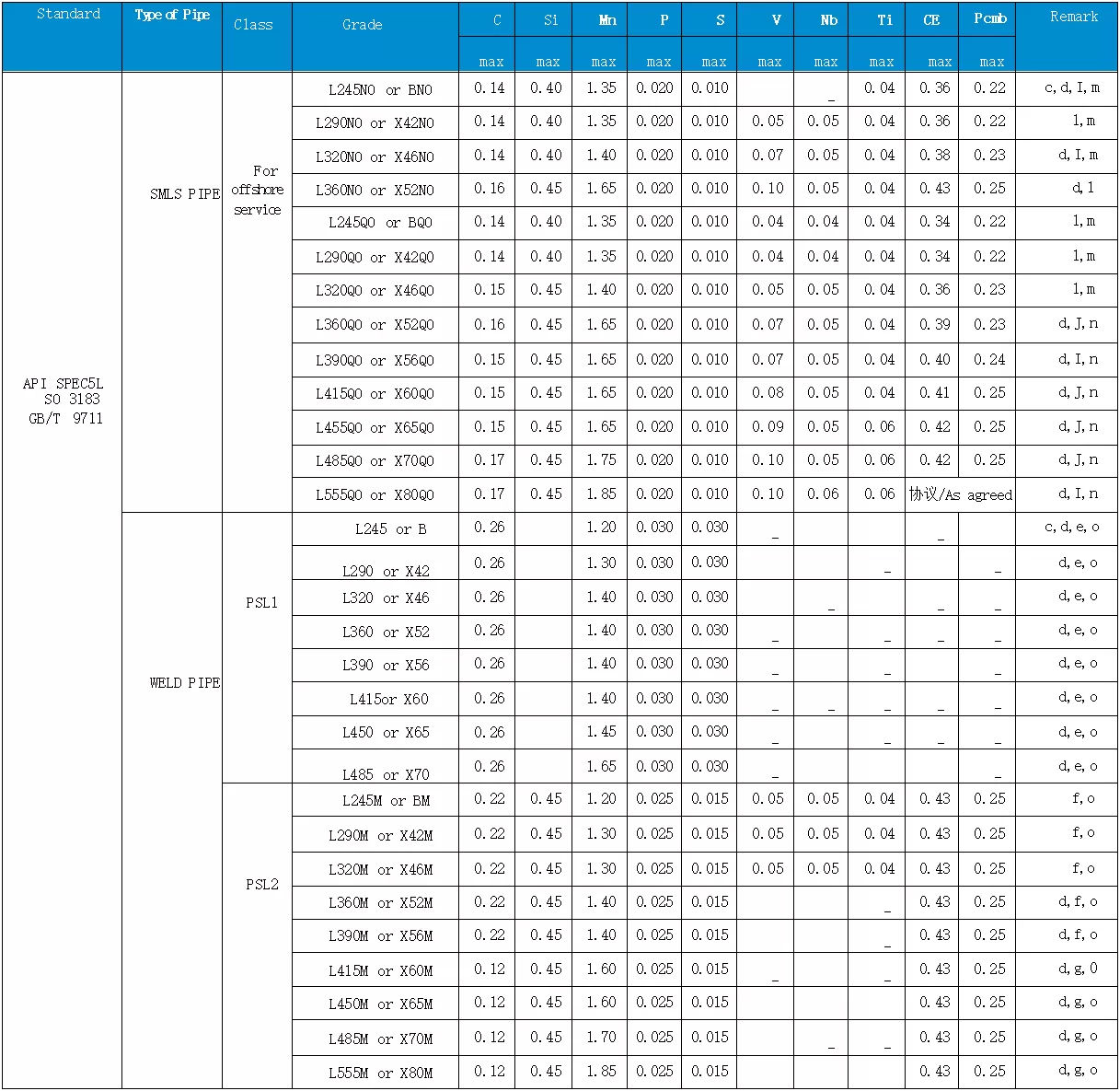

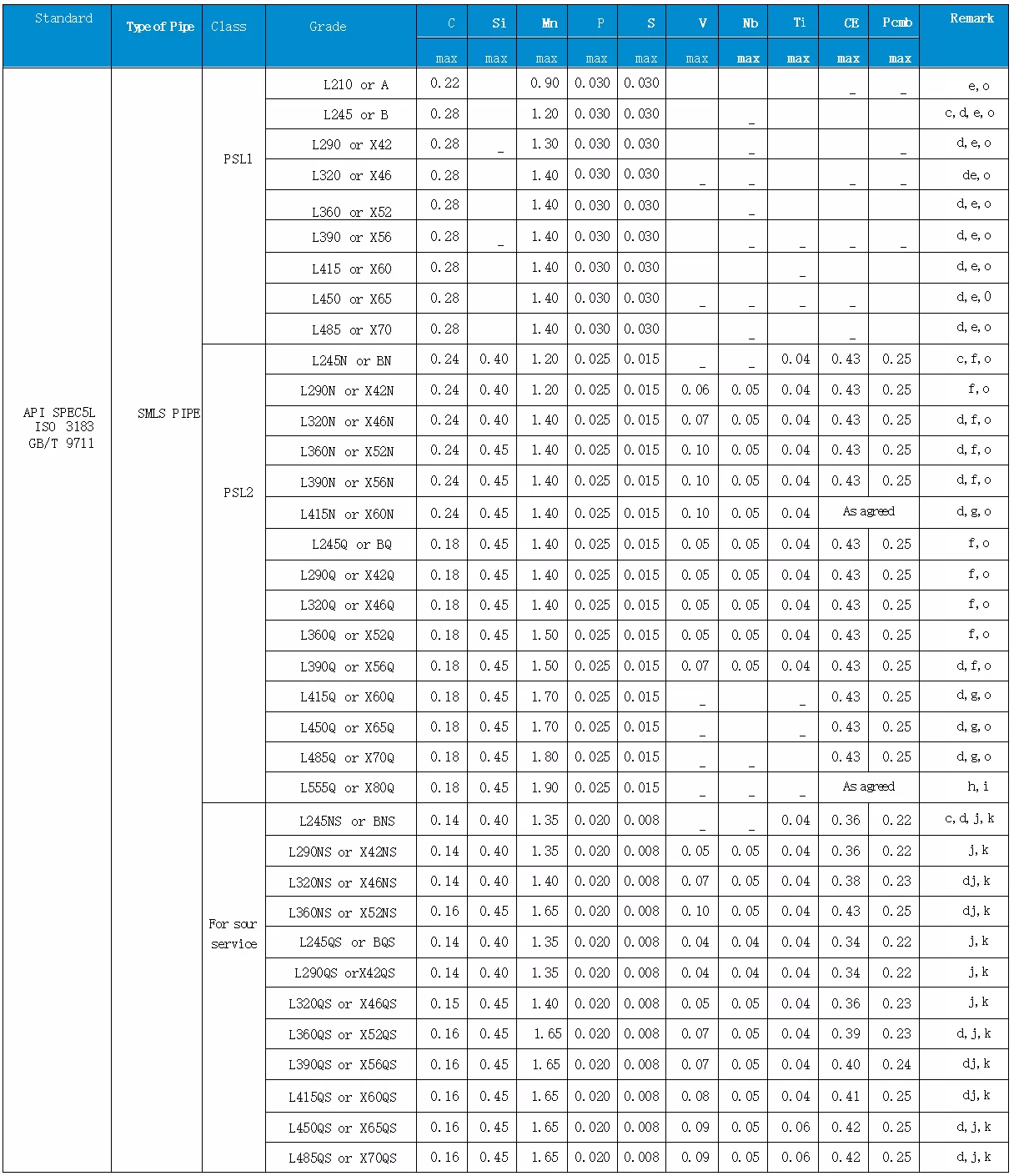

5. Typical Chemical Components for Line Steels
c Nb+V≤0.06%
d Nb+V+Ti≤0.15%
e Cu≤0.50%,Ni≤0.50%,Cr≤0.50%,Mo≤0.15% f Cu≤0.50%,Ni≤0.30%,Cr≤0.30%,Mo≤0.15% g Cu≤0.50%,Ni≤0.50%,Cr≤0.50%,Mo≤0.50% h Cu≤0.50%,Ni≤1.00%,Cr≤0.50%,Mo≤0.50% i B≤0.004%
jALL≤0.060%,N≤0.012%,AI/N≥2,Cu≤0.35%,Ni≤0.30%,Cr≤0.30%,Mo≤0.15%,B≤0.0005% k for SMLS and welded pipe Ca≤0.006%
IAl≤0.060%,N≤0.012%,AI/N≥2
m Cu≤0.35%,Ni≤0.30%,Cr≤0.30%,Mo≤0.10%,B≤0.0005% n Cu≤0.50%,Ni≤0.50%,Cr≤0.50%,Mo≤0.50%,B≤0.0005%
o B≤0.001%

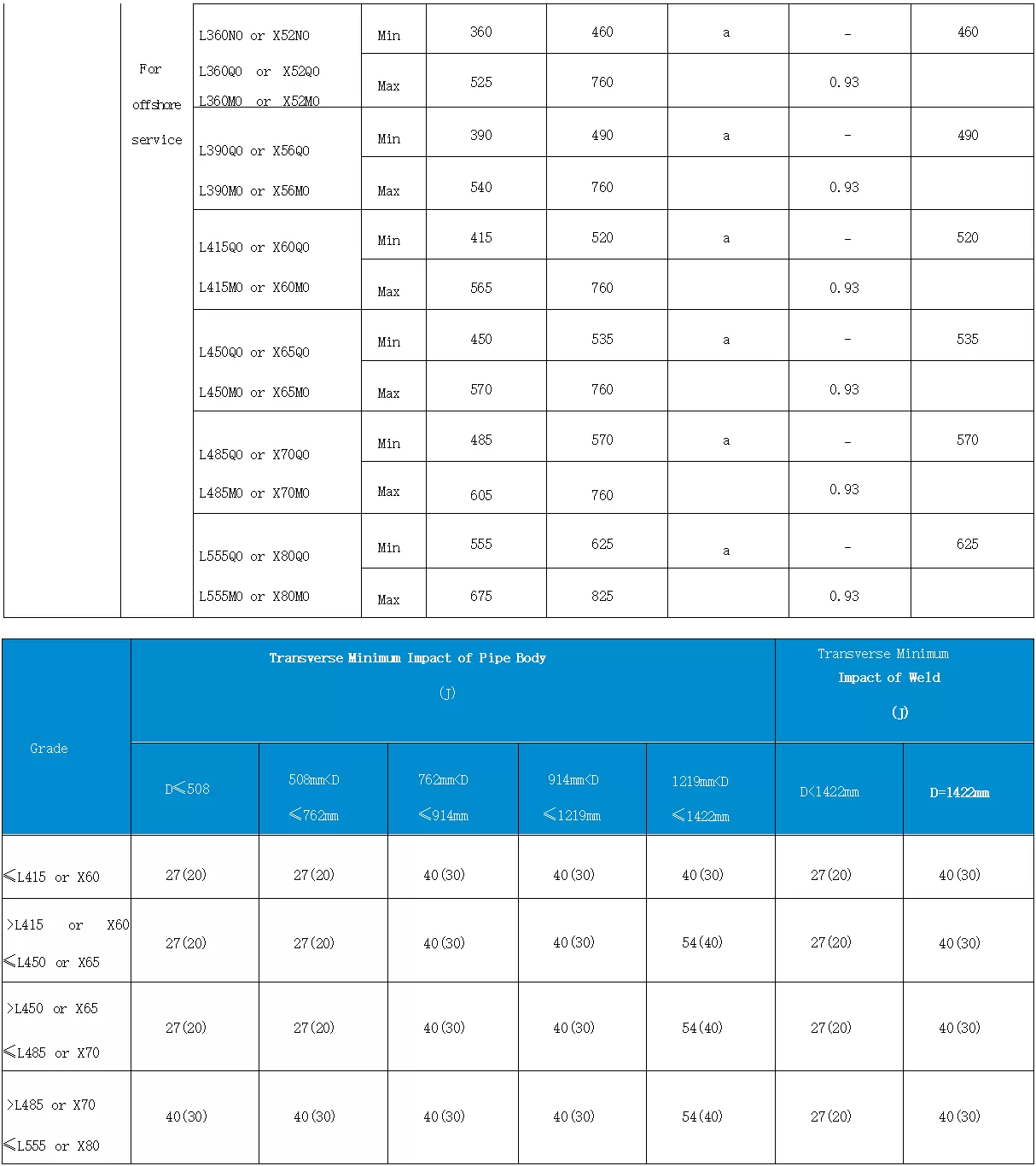

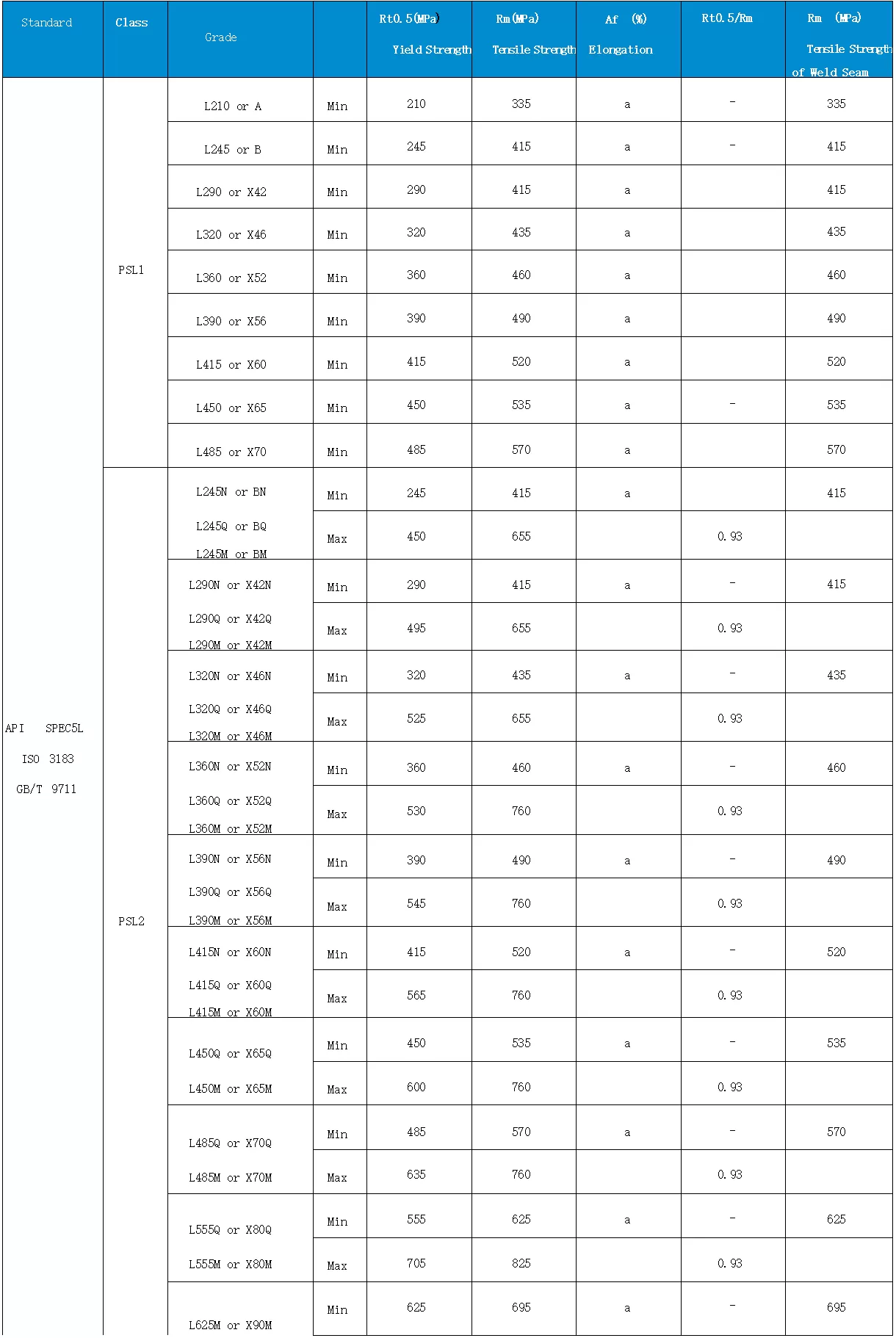

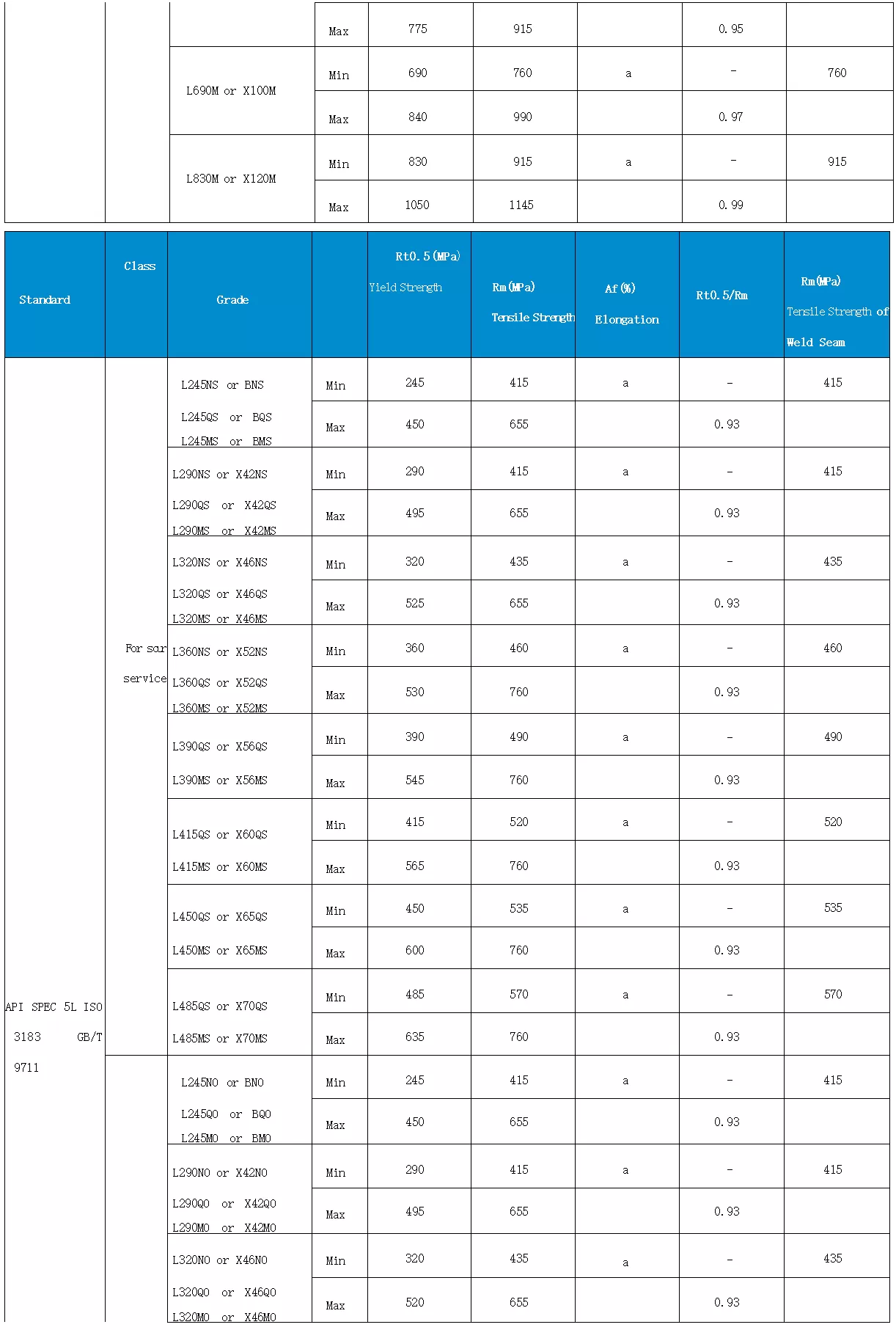

6. Mechanic Properties
Note:(1)The values in the table be suitable for the full size standard sample.
(2)The value inside bracket is the minimum single value,outside bracket is the average value.
(3)Test Temperature:0℃ .
For more details on specific carbon and alloy steel tubing and pipes, please refer to the specific product details or contact us at your convenience.
