GOST 20295: Welded Steel Pipes for Oil and Gas Pipelines

1. Scope

- Applies to electric-resistance welded (ERW) and submerged arc welded (SAW) steel pipes used in main oil & gas pipelines, including those for sour service (H₂S-containing environments).

 2. Ordering Information

When ordering pipes per GOST 20295, the following must be specified:

- Pipe dimensions (outer diameter, wall thickness, length)

- Steel grade (e.g., K48, K52, K60, etc.)

- Manufacturing method (ERW or SAW)

- Delivery condition (normalized, thermally improved, etc.)

- Additional requirements (impact testing, HIC resistance, etc.)

 3. Main Steel Grades & Mechanical Properties

| Steel Grade | Yield Strength (MPa, min) | Tensile Strength (MPa) | Elongation (%) |

| K42       | ≥ 420                       | 520–640                   | ≥ 24              |

| K48       | ≥ 480                       | 570–710                   | ≥ 22              |

| K52       | ≥ 520                       | 610–760                   | ≥ 20              |

| K60       | ≥ 600                       | 690–830                   | ≥ 18              |

 4. Chemical Composition

- Limits for C, Mn, Si, S, P, Nb, V, Ti, and other microalloying elements.

- Carbon Equivalent (CE) is restricted for weldability.

 5. Inspection & Testing Requirements

- Non-destructive testing (NDT):

  - 100% ultrasonic testing (UT) for weld seams.

  - Eddy current or radiographic testing (if specified).

- Mechanical tests:

  - Tensile, impact (Charpy V-notch at –20°C or –40°C), hardness.

- Hydrostatic testing:

  - Mandatory for all pipes (test pressure calculated per standard).

- HIC/SSC testing (for sour service applications).

 6. Marking & Certification

- Pipes must be marked with:

  - Manufacturer’s name, steel grade, size, heat number, and GOST 20295 compliance.

- Certification: Mill Test Certificate (MTC) with chemical/mechanical test results.

 7. Additional Requirements

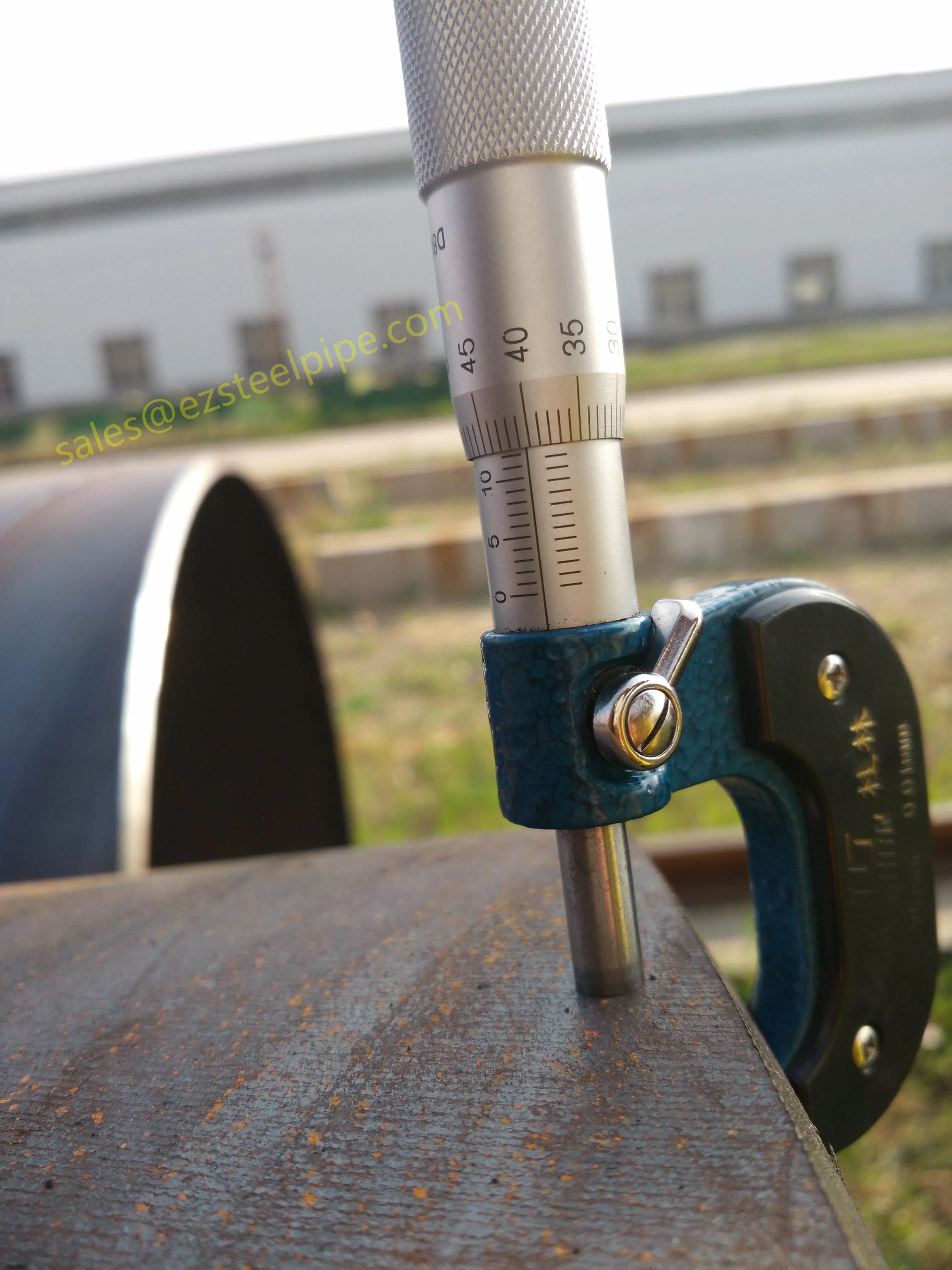

- Dimensional tolerances (OD, wall thickness, straightness).

- Surface quality (no cracks, laps, or unacceptable defects).

- End preparation (beveled ends if required for welding).

 Key Revisions in Latest Version

- Stricter Sulfur (S) and Phosphorus (P) limits for improved toughness.

- Updated NDT methods (enhanced UT sensitivity requirements).

- Expanded steel grades for high-pressure applications.

 Applicable Replacements & Related Standards

- ISO 3183 (international equivalent for pipeline pipes).

- API 5L (similar scope but differs in some technical requirements).
