ASTM B111/B111M - Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock

 1. Scope

- Covers seamless copper and copper-alloy tubes for condensers, heat exchangers, and ferrule stock.

- Includes tubes made from UNS alloys: C10200, C10300, C10800, C12000, C12200, C14200, C19200, C23000, C28000, C44300, C44400, C44500, C60800, C61400, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, and C72200.

- Available in metric (B111M) or inch-pound (B111) units.

 2. Ordering Information

Orders must specify:

l - ASTM standard designation (B111 or B111M).

l - Alloy UNS number.

l - Temper (e.g., annealed, as-drawn).

l - Dimensions (OD, wall thickness, length).

l - Quantity (total length or number of pieces).

l - End finish (e.g., plain, beveled).

l - Certification or test report requirements (if needed).

l - Special packaging (if required).

 3. Material Codes (UNS Alloys)

Common alloys include:

- Oxygen-free copper: C10200, C10800.

- Phosphorus-deoxidized copper: C12000, C12200.

- Admiralty brass: C44300, C44400, C44500.

- Aluminum brass: C68700.

- Cu-Ni alloys (90-10, 70-30): C70600, C71500.

 4. Chemical Composition

- Strict limits on copper, zinc, nickel, iron, lead, and other elements depending on the alloy.

- Compliance with ASTM E478 or other approved test methods.

 5. Mechanical Properties

- Tensile strength, yield strength, and elongation requirements vary by alloy and temper (e.g., annealed vs. as-drawn).

- Examples:

  - C12200 (annealed): Tensile strength ≥ 220 MPa (32 ksi), elongation ≥ 40%.

  - C71500 (as-drawn): Tensile strength ≥ 485 MPa (70 ksi), elongation ≥ 15%.

 6. Inspection and Testing Requirements

- Hydrostatic or nondestructive (NDT) testing: Each tube must be tested for leaks.

- Flattening test: For annealed tubes (sample must not crack or split).

- Flaring test: For certain alloys/tempers.

- Grain size test: For annealed copper tubes (ASTM E112).

- Certification: Manufacturer must provide test results certifying compliance.

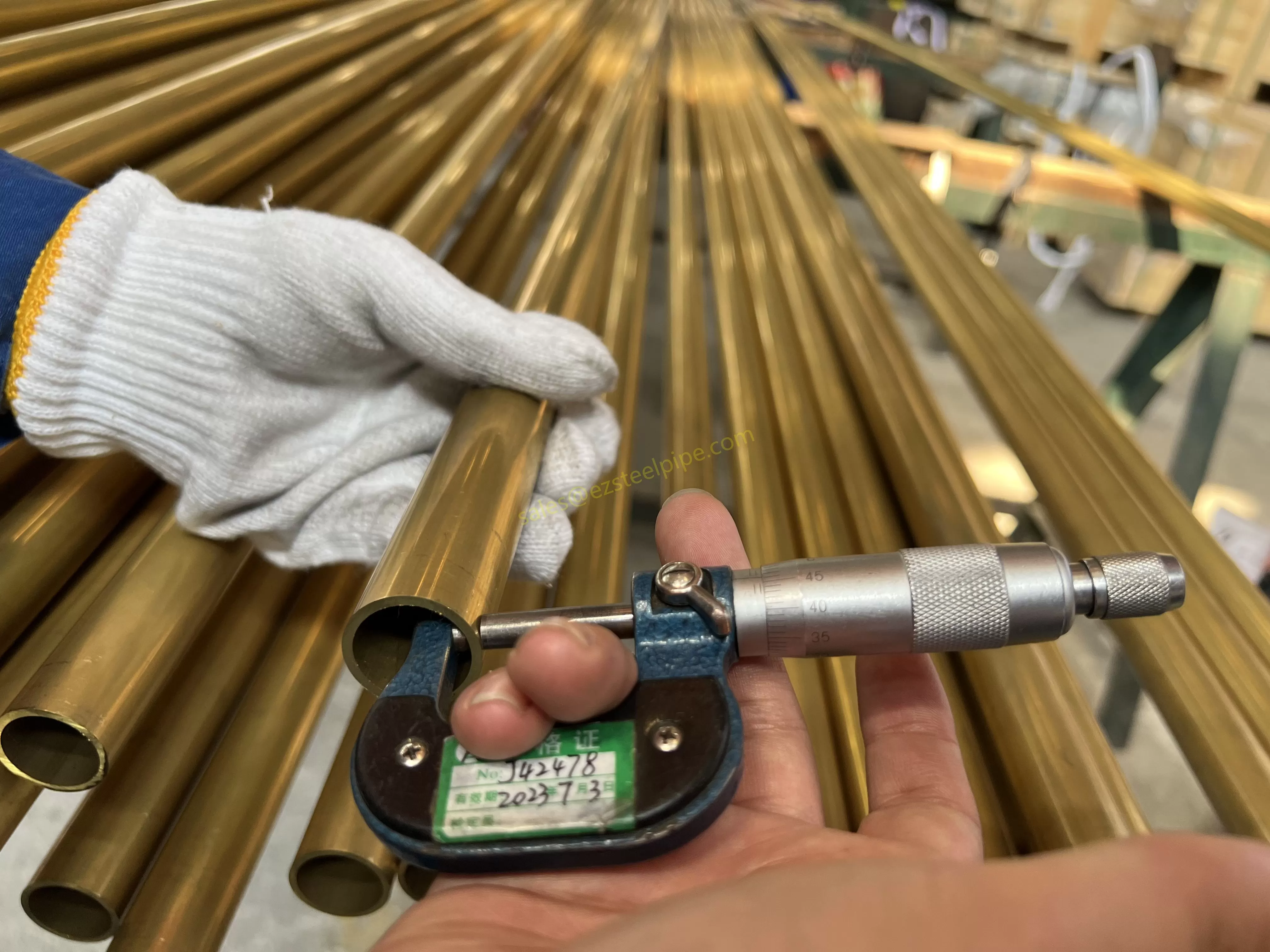

 7. Dimensional Tolerances

- Outside diameter: ±0.1 mm (metric) or ±0.005 in (inch-pound).

- Wall thickness: ±10% of nominal thickness.

- Length: ±3 mm for cut lengths.

 8. Surface Finish

- Tubes must be free of scale, cracks, and defects.

- Minor imperfections allowed if within dimensional tolerances.

 9. Certification & Marking

- Each tube must be marked with:

  - Manufacturer’s name or trademark.

  - Alloy designation.

  - Temper.

  - ASTM standard (B111/B111M).

- Certified test reports available upon request.

 10. Keywords

- Copper alloy tubes, condenser tubes, seamless tubes, ferrule stock, heat exchangers, UNS alloys.

Popular Material Codes Available

 1. Pure and Low-Alloyed Copper

- C10200 (Oxygen-Free Copper, OF)

- C10300 (Oxygen-Free Copper, Extra Low Phosphorus)

- C10800 (Oxygen-Free Copper with Silver)

- C12000 (Phosphorus-Deoxidized Copper, DHP)

- C12200 (Phosphorus-Deoxidized Copper, DHP, with higher phosphorus)

- C14200 (Arsenic-Bearing Phosphorized Copper)

 2. Brasses (Copper-Zinc Alloys)

- C19200 (Copper-Iron-Phosphorus alloy)

- C23000 (Red Brass, 85% Cu)

- C28000 (Muntz Metal, 60% Cu)

- C44300 (Admiralty Brass, with 1% Sn + As/Sb)

- C44400 (Admiralty Brass, with 1% Sn + P)

- C44500 (Admiralty Brass, with 1% Sn + As)

 3. Aluminum Brasses

- C68700 (Arsenical Aluminum Brass)

 4. Copper-Nickel Alloys

- C60800 (Aluminum Bronze)

- C61400 (Aluminum Bronze, with higher Fe)

- C70400 (Copper-Nickel 5% Fe-Mn)

- C70600 (Cu-Ni 90-10, Iron-Manganese modified)

- C70620 (Cu-Ni 90-10, Enhanced Corrosion Resistance)

- C71000 (Cu-Ni 80-20)

- C71500 (Cu-Ni 70-30)

- C71520 (Cu-Ni 70-30, Enhanced Corrosion Resistance)

- C71640 (Cu-Ni 66-30-2-2, with Fe & Mn)

- C72200 (Cu-Ni with Chromium)

 Key Notes:

- UNS (Unified Numbering System) codes are used for standardized alloy identification.

- Some alloys (e.g., C44300, C68700, C71500) are commonly used in marine and power plant condensers due to corrosion resistance.

- Temper (e.g., annealed, as-drawn) affects mechanical properties and must be specified in orders.
