U-type J-type Bend Tubing

J-tubes and U-tubes are essential components in shell-and-tube heat exchangers, particularly in U-tube bundle designs. They allow for thermal expansion and ease of maintenance. Below are the key steps and considerations for making them:

 1. Materials Selection

- Common materials: Stainless steel (SS304, SS316), carbon steel, copper alloys, titanium, or nickel alloys (depending on fluid corrosiveness and temperature).

- Ensure material meets ASME/ANSI, ASTM, or other industry standards.

 2. Tube Bending Process

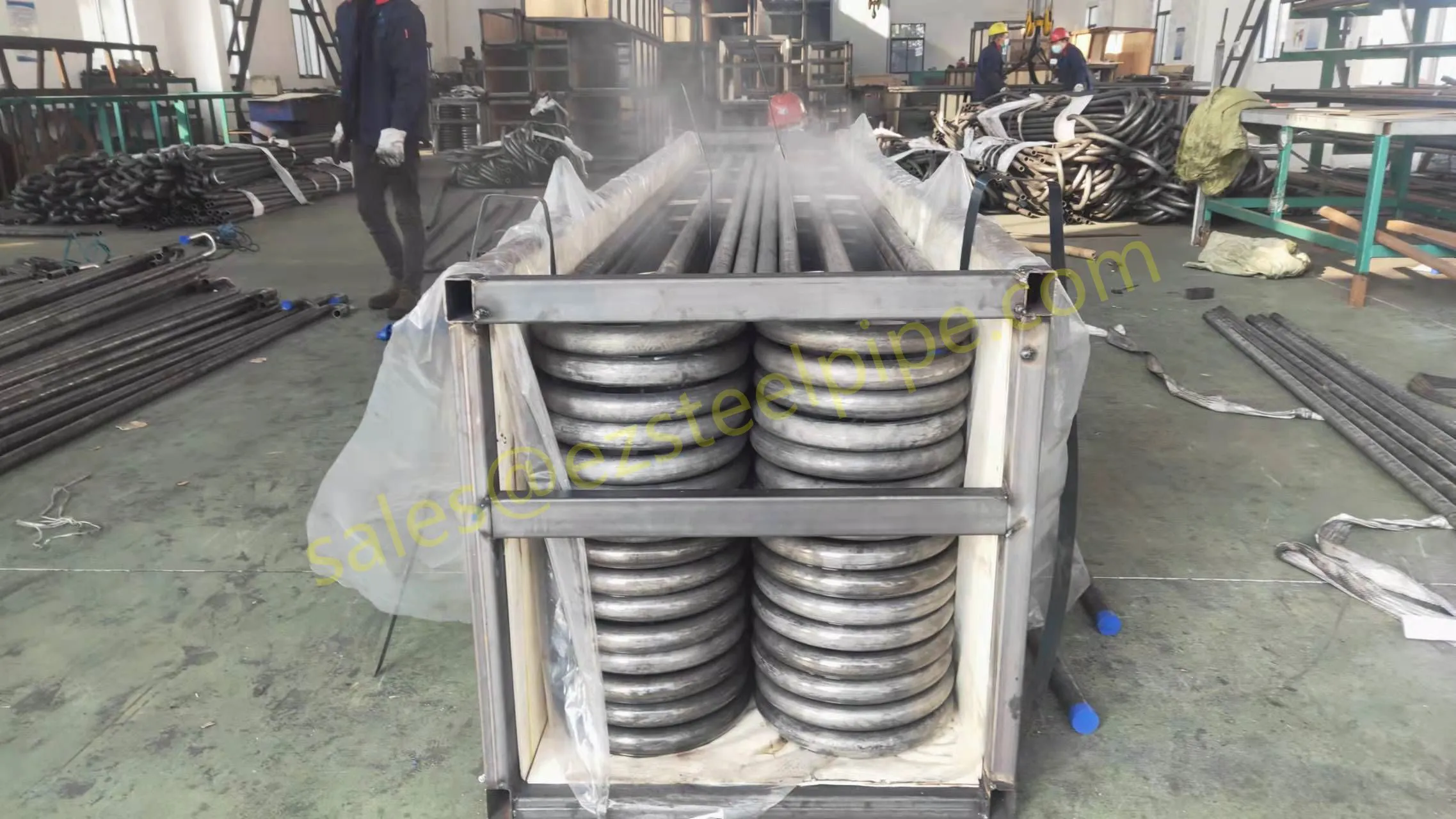

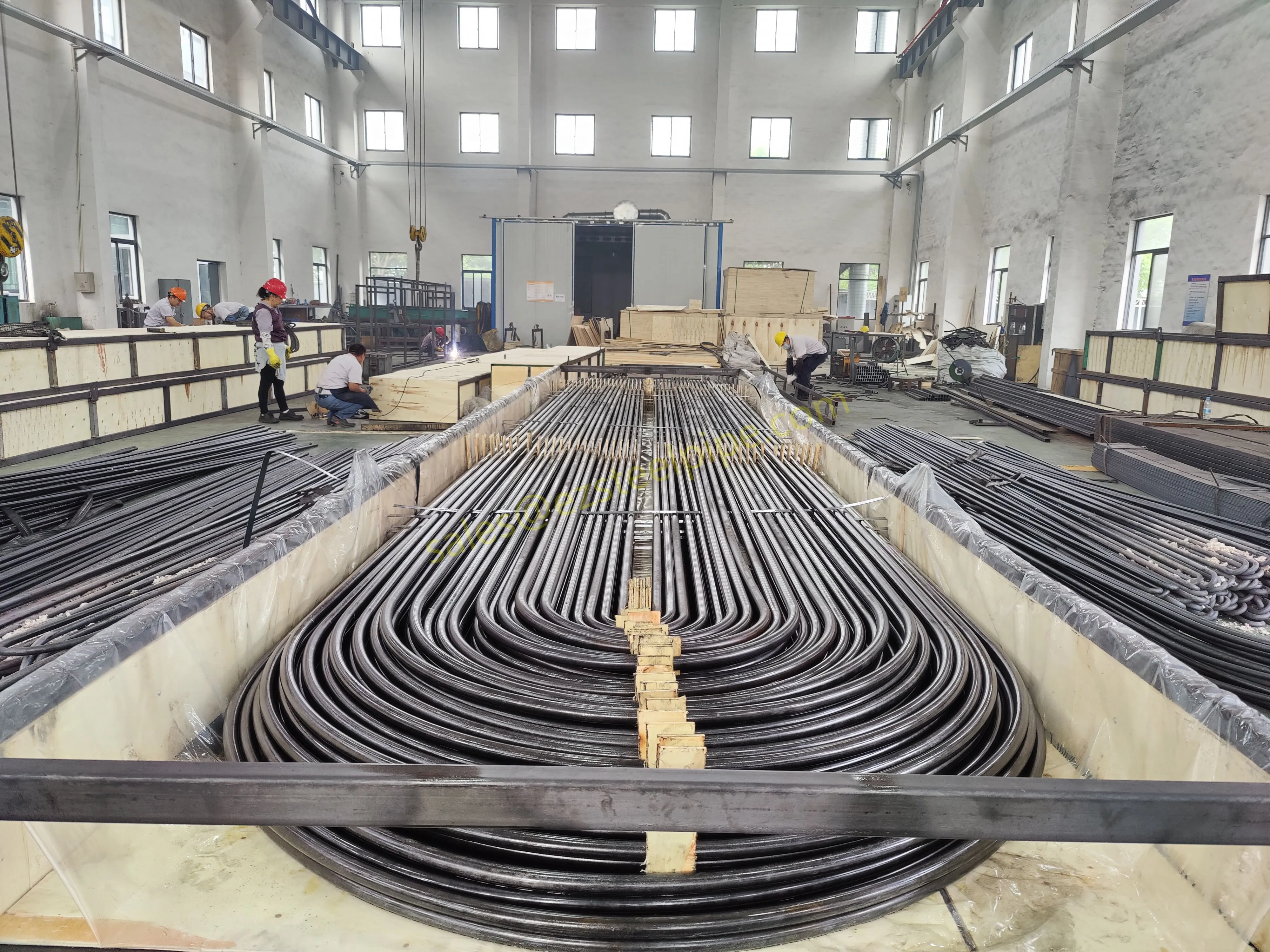

 For U-Tubes:

- Mandrel Bending: Ensures smooth bends without wrinkles.

- Cold Bending (for small diameters): Uses hydraulic or rotary draw benders.

- Hot Bending (for large diameters/thick walls): Heating before bending prevents cracking.

- Minimum Bend Radius: Typically 1.5 to 3 times the tube outer diameter (OD) to avoid deformation.

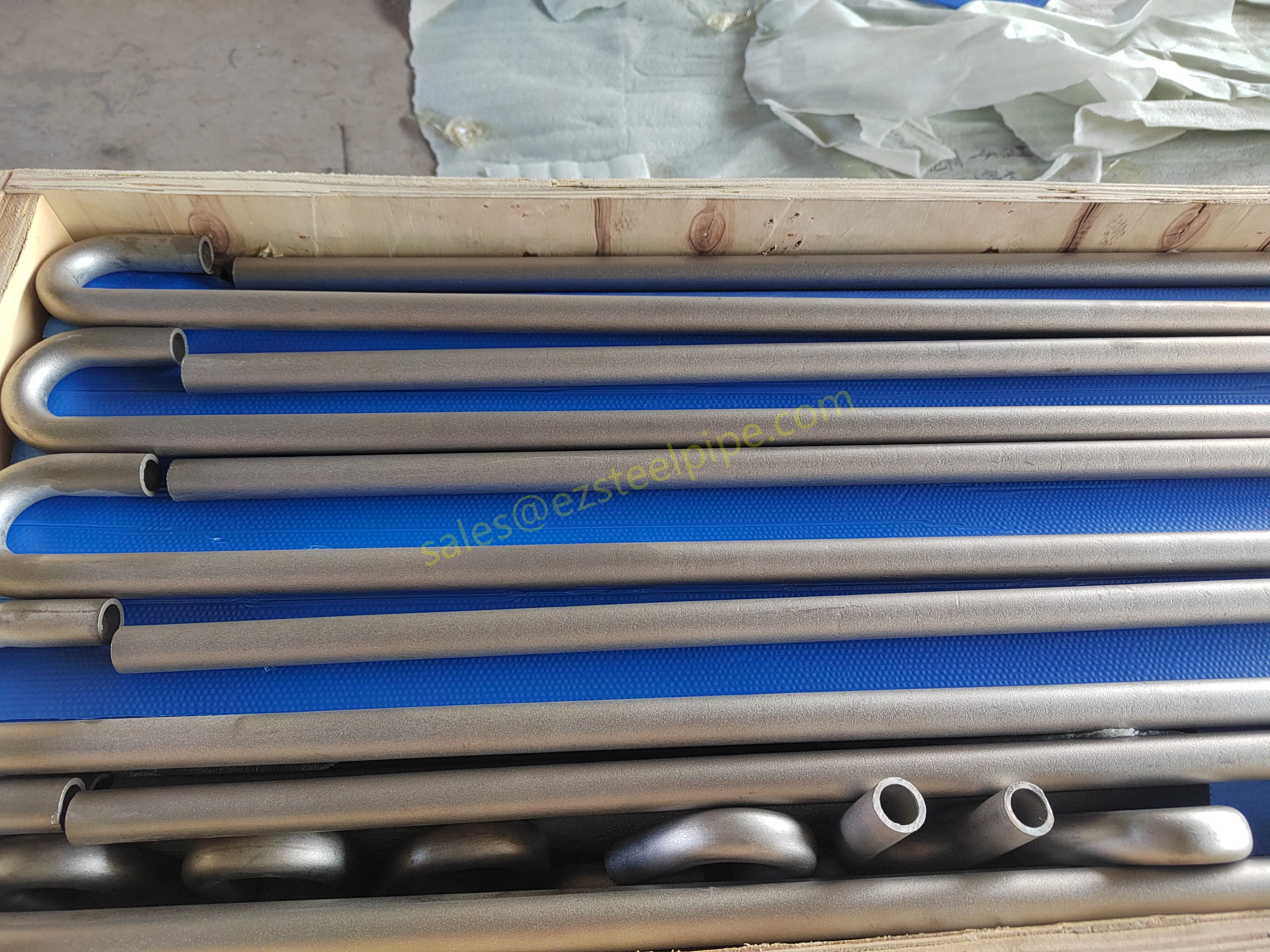

 For J-Tubes (Single Bend, 180° Return):

- Similar to U-tubes but with one straight leg longer than the other.

- Used where space constraints exist.

 3. Key Manufacturing Steps

1. Cutting the Tube

   - Tubes are cut to required lengths (including bend allowance).

   - Ends deburred for smooth welding

2. Bending the Tube

   - CNG or hydraulic tube benders ensure precision.

   - Laser/optical measurement checks bend angles and radii.

3. Heat Treatment (if needed)

   - Stress relieving (for high-pressure/temperature applications).

   - Annealing (for work-hardened materials like stainless steel).

4. End Preparation

   - Beveling for welding (if tubes are welded to tube sheets).

   - Expanding/rolling into tube sheets for a tight fit.

5. Testing & Inspection

   - Hydrostatic/Pneumatic Testing: Checks for leaks.

   - Dimensional Checks: Ensures bend radius and straight lengths meet specs.

   - NDT (Non-Destructive Testing):

     - Dye penetrant (PT) or Radiography (RT) for weld integrity.

     - Ultrasonic Testing (UT) for wall thickness uniformity.

 4. Assembly in Heat Exchanger

- U-tubes are inserted into the tube sheet and expanded/welded.

- The J-tube (if used for cleaning/inspection) may be installed as a removable bundle.

- Tube supports/baffles are added to prevent vibration.

 5. Alternative Methods

- Prefabricated U/J-tubes: Available from suppliers for standard sizes.

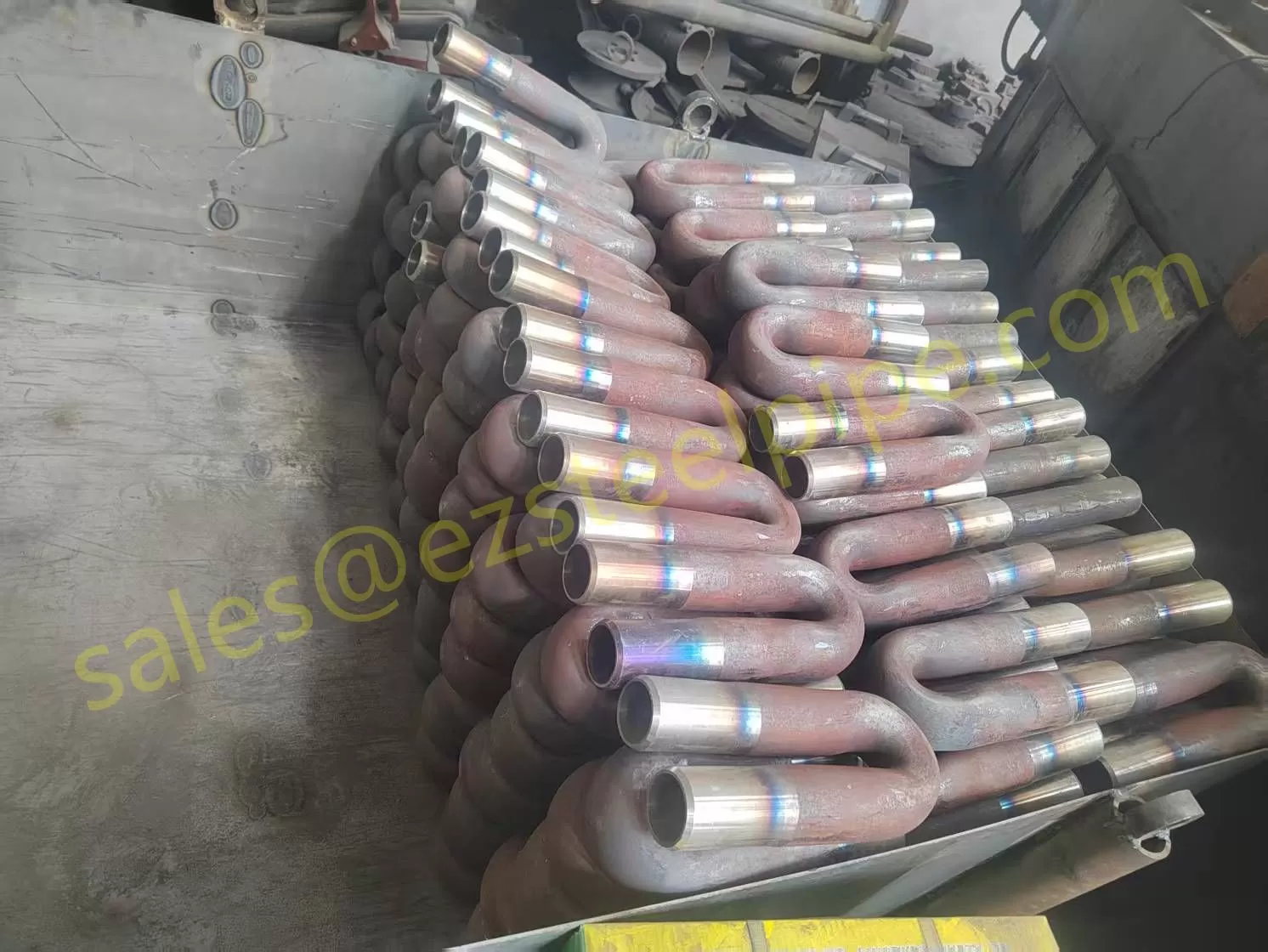

- Welded Return Bends: For large diameters where bending is difficult.

 Key Considerations

- Thermal Expansion: U-tubes naturally accommodate expansion.

- Fluid Flow: Ensure smooth bends to avoid pressure drop.

- Cleanability: U-tube bundles allow for chemical/mechanical cleaning.

- Standards Compliance: ASME Sec VIII (Pressure Vessels), TEMA (Heat Exchanger Standards).
