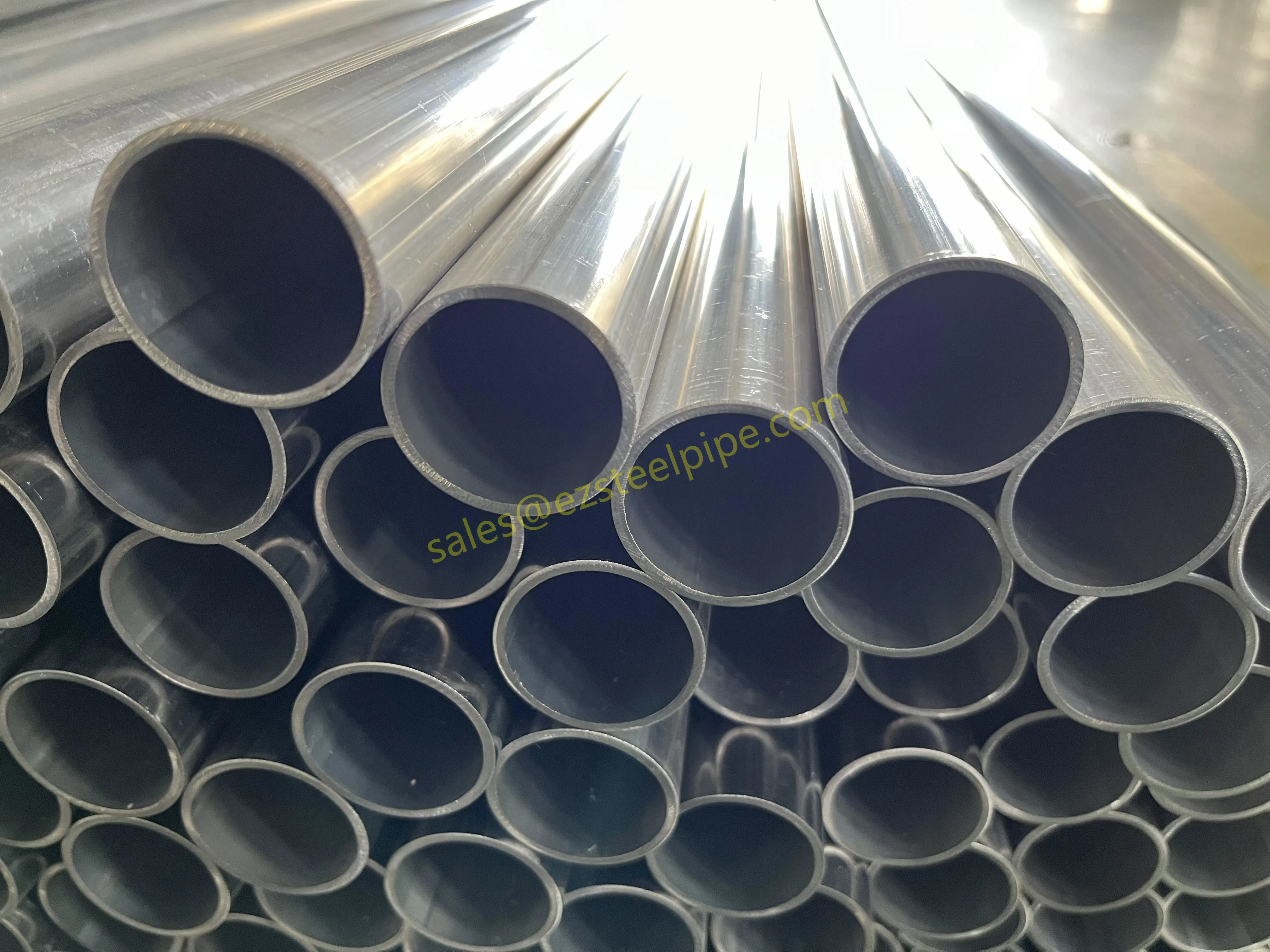

GOST 9941 Seamless Stainless Steel Pipes for Corrosion-Resistant and Heat-Resistant Applications

 1. Scope

GOST 9941 specifies the requirements for seamless stainless steel pipes used in corrosion-resistant and heat-resistant applications, including those for mechanical engineering, chemical industries, and high-temperature service.

 2. Ordering Information

When ordering pipes under GOST 9941, the following must be specified:

- Pipe dimensions (outer diameter, wall thickness, length)

- Steel grade (chemical composition)

- Mechanical properties (if special requirements apply)

- Heat treatment condition

- Type of testing and inspection (non-destructive testing, hydrostatic testing, etc.)

- Additional requirements (surface finish, end preparation, marking, packaging)

 3. Steel Grades and Chemical Composition

The standard covers austenitic, ferritic, and martensitic stainless steels, including but not limited to:

- Austenitic: 12Х18Н10Т (AISI 321), 08Х18Н10 (AISI 304), 10Х17Н13М2Т (AISI 316Ti)

- Ferritic: 08Х13 (AISI 409), 12Х17 (AISI 430)

- Martensitic: 20Х13 (AISI 420), 30Х13 (AISI 420 mod.)

Exact chemical composition limits are specified in the standard for each grade.

 4. Manufacturing and Heat Treatment

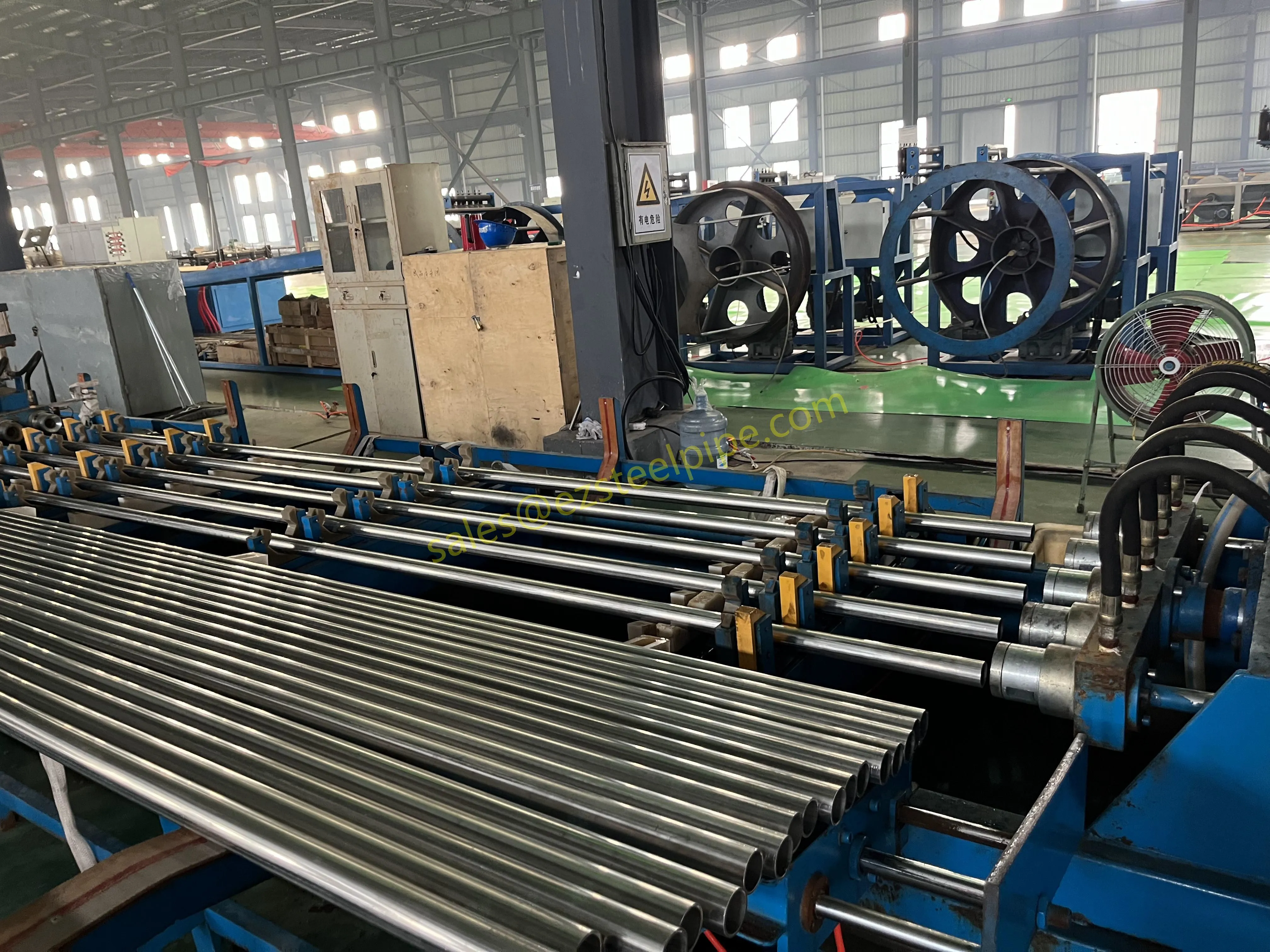

- Pipes are produced by hot rolling, cold rolling, or cold drawing.

- Mandatory heat treatment (annealing, quenching, tempering) depending on the steel grade.

 5. Mechanical Properties

- Tensile strength, yield strength, elongation requirements are specified per steel grade.

- Hardness limits may apply for certain grades.

 6. Inspection and Testing Requirements

- Hydrostatic testing (unless exempted for certain applications).

- Non-destructive testing (NDT) (ultrasonic or eddy current testing as required).

- Visual inspection for surface defects.

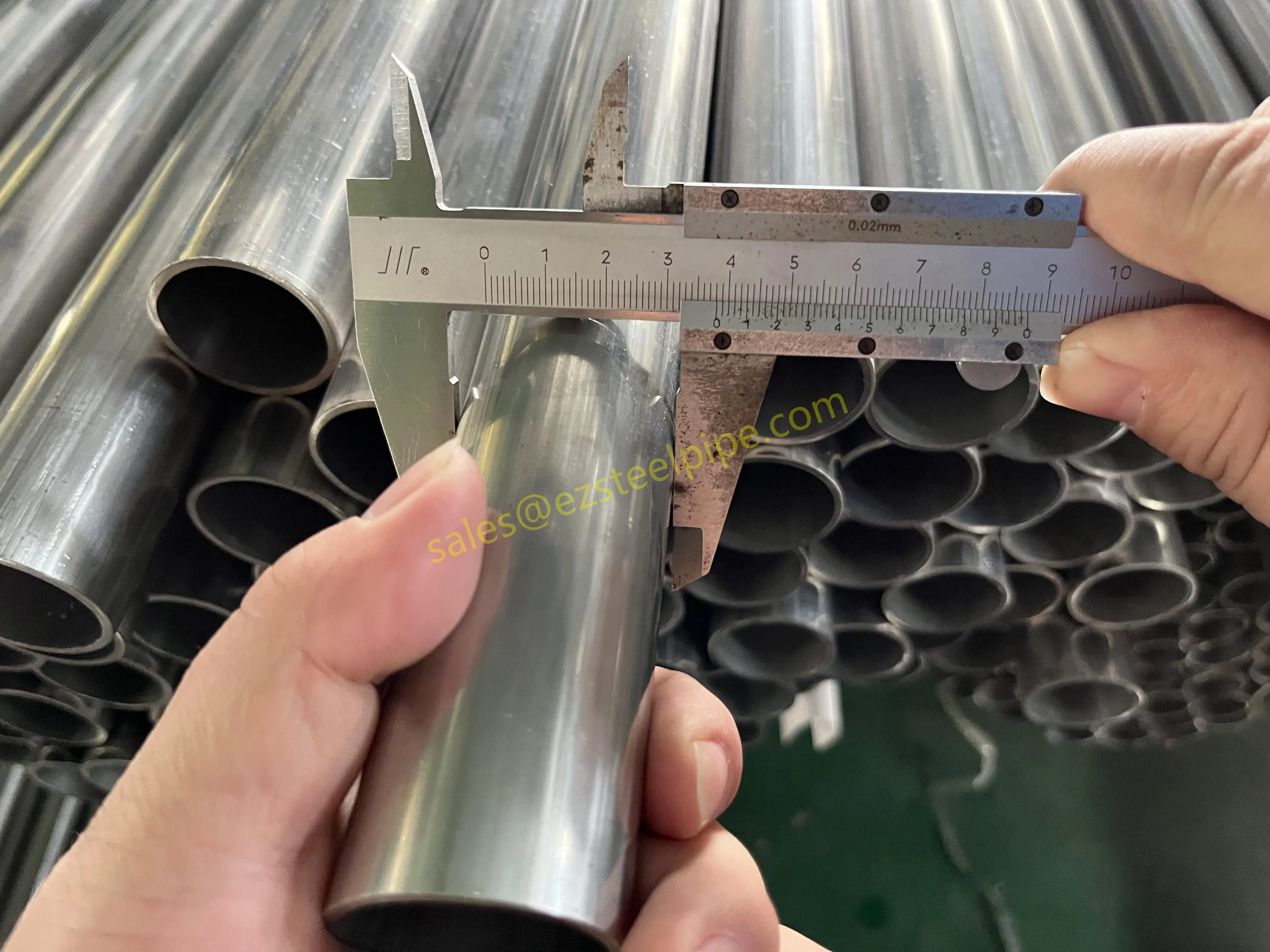

- Dimensional checks (outer diameter, wall thickness, straightness).

- Chemical analysis (verification of composition).

- Mechanical tests (tensile, hardness, flattening, flaring, or bending tests if specified).

 7. Surface Quality & Defect Limitations

- Pipes must be free from cracks, laps, and other harmful defects.

- Minor surface imperfections may be allowed if within permissible limits.

 8. Marking and Packaging

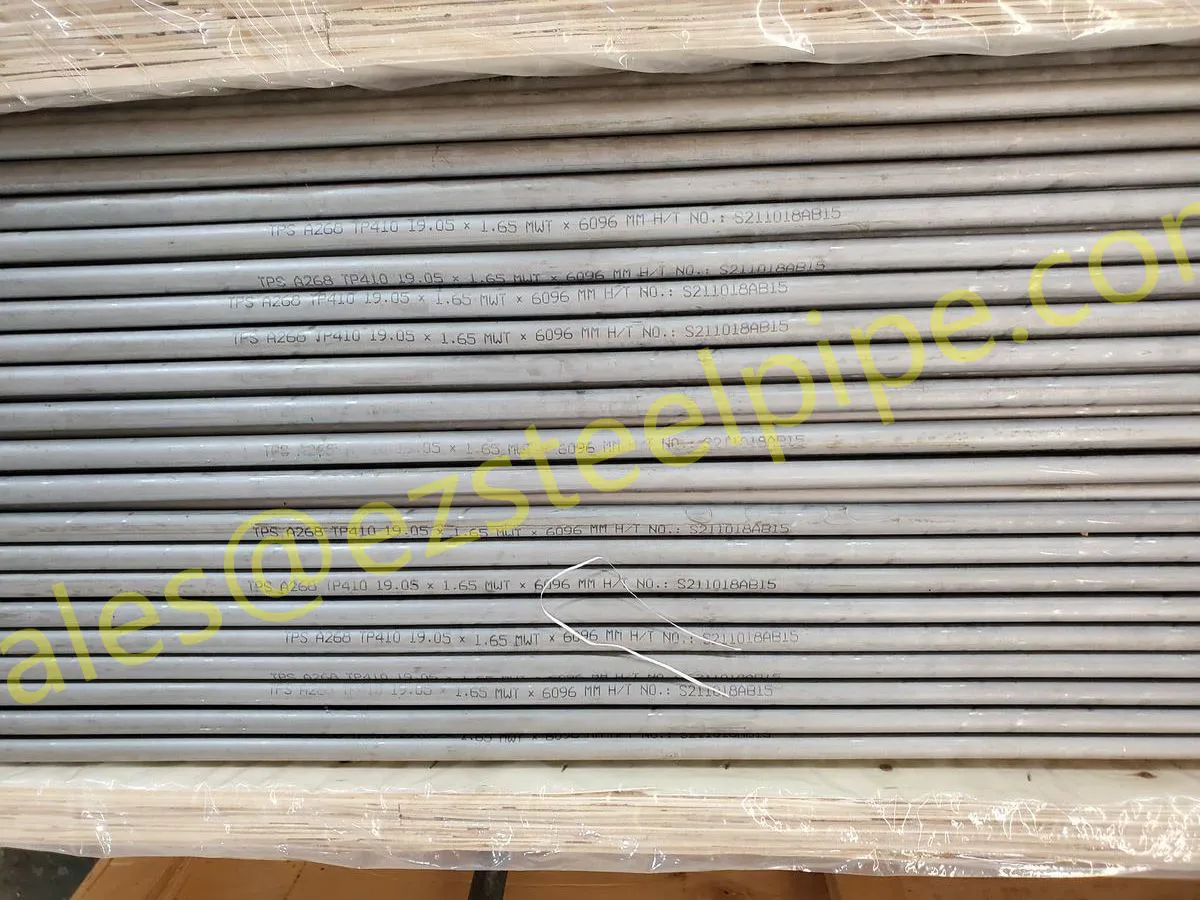

- Each pipe must be marked with:

  - Manufacturer’s name/trademark

  - Steel grade

  - Heat number

  - Pipe dimensions

  - Standard designation (GOST 9941)

- Packaging must ensure protection against damage during transport.

 9. Certification & Compliance

- Manufacturer must provide a certificate of compliance with test results.

- Optional third-party inspection if specified in the order.
