Socket-Welding Pipe Fittings for Piping System

Socket-welding (SW) pipe fittings are used in high-pressure piping systems where a strong, leak-proof connection is required. Unlike butt-welding (BW) fittings, which are welded around the pipe's outer diameter, SW fittings involve inserting the pipe into a recessed area (socket) and then welding around the joint.

1. Manufacturing Method of SW Fittings

a) Material Selection

- Common materials: Carbon steel (ASTM A105), Stainless steel (ASTM A182 F304/316), Alloy steel (ASTM A182 F11/F22).

- Forged or machined from solid billets for high strength.

b) Forging & Machining Process

1. Hot Forging: Heated metal is shaped under high pressure.

2. Machining:

   - Inner socket is precision-machined to fit the pipe snugly.

   - Outer surface is finished to meet dimensional standards.

3. Heat Treatment: Annealing or quenching for stress relief.

4. Surface Treatment: Shot blasting, galvanizing (if required).

c) Quality Control

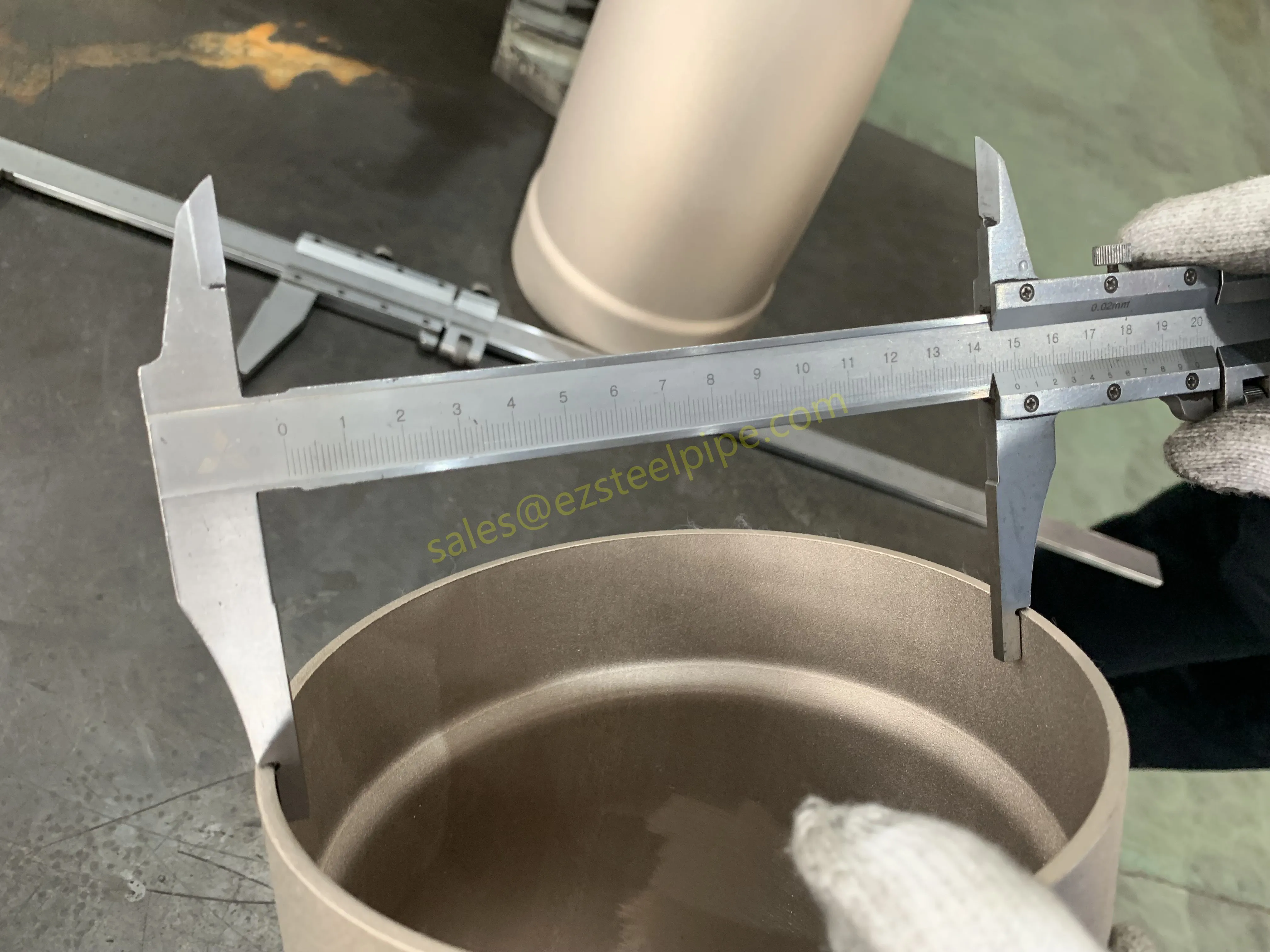

- Dimensional checks (per ASME B16.11).

- Pressure testing (optional, depending on application).

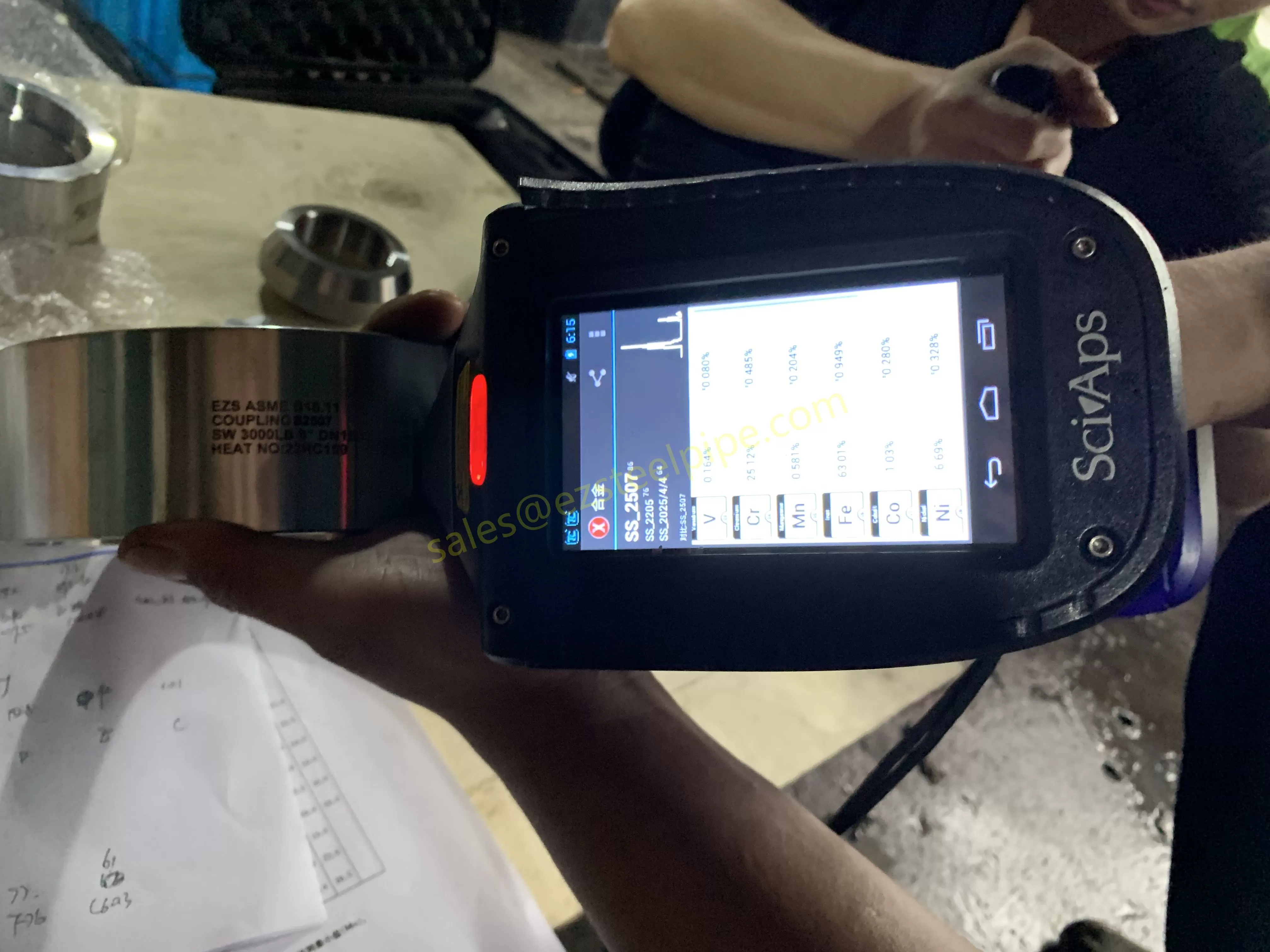

- Material certification (MTC as per ASTM/EN).

2. Common Types of SW Fittings

| Type       | Description | Application |

|---------------|----------------|----------------|

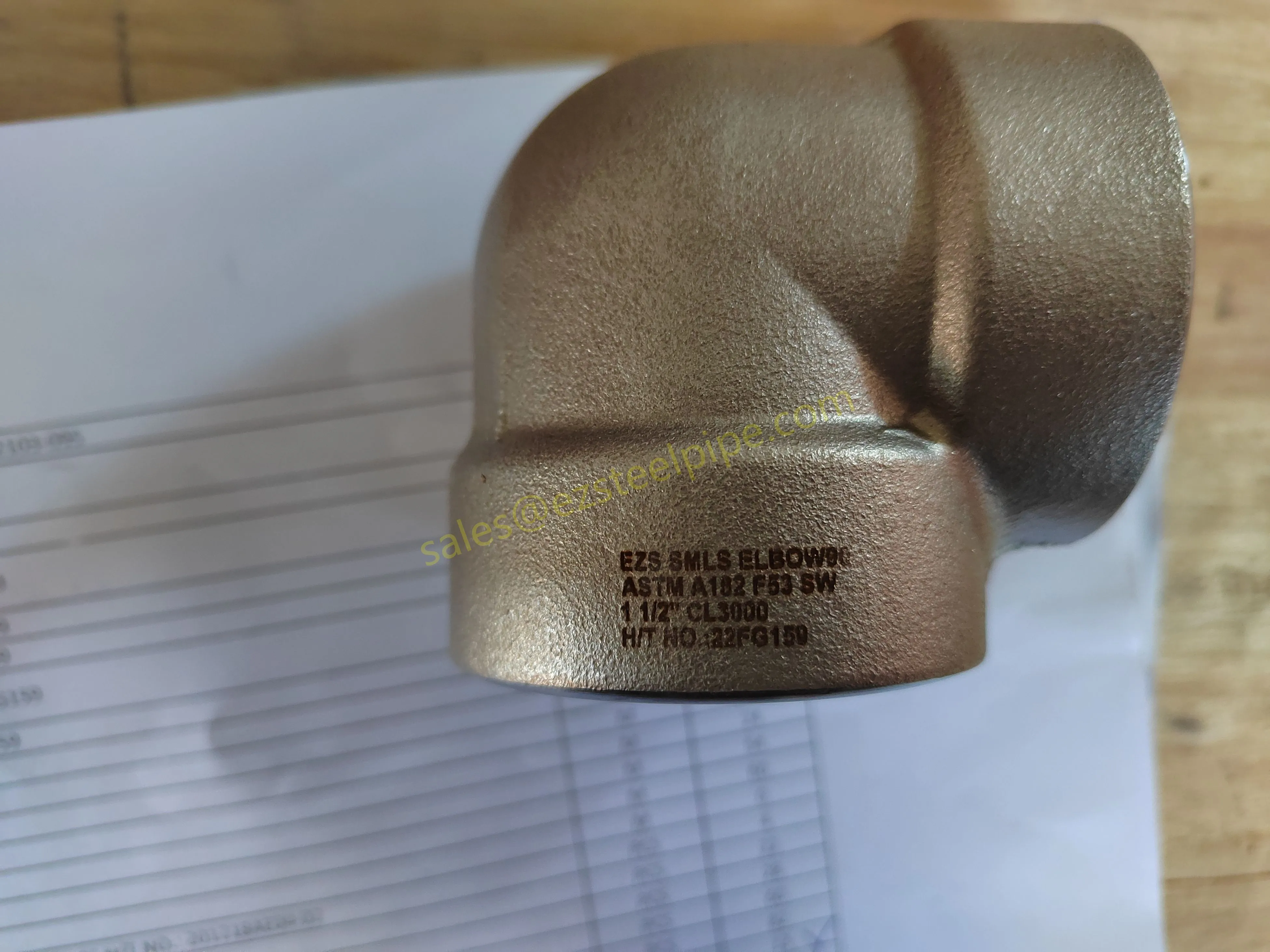

| SW Elbow  | 90° or 45° direction change | Compact piping systems |

| SW Tee    | Branch connection | Flow splitting/merging |

| SW Coupling | Joins two pipes | Straight pipe connections |

| SW Reducer | Connects different pipe sizes | Pump inlets, valve connections |

| SW Cap    | Seals pipe end | System termination |

| SW Union  | Allows disassembly | Maintenance points |

3. Applications of SW Fittings

✔ High-Pressure Systems (Hydraulic lines, steam lines).

✔ Small-Bore Piping (Typically NPS 2" or smaller).

✔ Vibration-Prone Systems (Better resistance than threaded fittings).

✔ Chemical & Petrochemical Plants (Corrosion-resistant SS fittings).

✔ Power Plants & Shipbuilding (High-integrity joints).

Limitations:

❌ Not ideal for large-diameter pipes (NPS > 4").

❌ Slip-on flange alternatives are preferred for frequent disassembly.

4. Key Differences Between SW and BW Fittings

| Feature       | Socket-Weld (SW) | Butt-Weld (BW) |

| Connection Type | Pipe inserted into socket | Pipe welded end-to-end |

| Size Range    | NPS ½" to 4" (small bore) | NPS ½" to 48"+ (large bore) |

| Strength      | Good for moderate pressure | Superior for high pressure/temperature |

| Internal Flow | Slight restriction at socket | Smooth, uninterrupted flow |

| Welding Process | Fillet weld around joint | Full-penetration groove weld |

| Cost         | Lower (less welding prep) | Higher (more labor-intensive) |

| Disassembly   | Difficult (welded) | Permanent (cutting required) |

When to Use SW Over BW?

- Small-diameter, high-pressure systems.

- Where space constraints prevent BW flange use.

- When threaded fittings are insufficient.

5. Popular Manufacturing Standards for SW Fittings

a) ASME B16.11 (Most Common)

- Covers forged carbon/alloy steel SW fittings.

- Pressure ratings: Class 3000, 6000, 9000 (higher than threaded fittings).

- Materials: ASTM A105 (CS), A182 (SS), A350 (low-temp).

b) MSS SP-79 / SP-83

- Stainless steel SW fittings (complements ASME B16.11).

- Used in corrosive environments.

c) EN 10241 / ISO 5251 (European Standards)

- Equivalent to ASME B16.11 but with metric dimensions.

- Common in EU oil & gas, chemical industries.

d) JIS B2306 (Japanese Standard)

- Similar to ASME B16.11 but with JIS material grades.

6. Installation & Welding Tips for SW Fittings

1. Gap Requirement: Leave a 1.6mm (1/16") gap between pipe and socket shoulder to prevent cracking.

2. Welding Method:

   - TIG/GTAW (best for stainless steel).

   - SMAW (Stick Welding) for carbon steel.

3. Post-Weld Inspection:

   - Visual check for cracks/porosity.

   - Dye penetrant testing (PT) for critical systems.

Standard ranges for dimensions, pressure classes, and materials

Socket-welding (SW) fittings are primarily used for small-bore, high-pressure piping systems.

 1. Size Range (Nominal Pipe Size – NPS)

| Fitting Type       | Common Size Range (NPS) | Max. Typical Size |

| SW Elbow (90°/45°) | ⅛" to 4"                   | 4" (limited beyond)   |

| SW Tee             | ⅛" to 4"                   | 4"                   |

| SW Coupling        | ⅛" to 4"                   | 4"                   |

| SW Reducer         | ⅛" to 4"                   | 4"                   |

| SW Cap             | ⅛" to 4"                   | 4"                   |

| SW Union           | ⅛" to 2"                   | 2" (rarely beyond)   |

Note:

- Most common applications use NPS ½" to 2".

- NPS 3" and 4" are less common (BW fittings preferred).

- NPS > 4" is not standard for SW fittings (butt-welding is used instead).

 2. Pressure Class Ratings (ASME B16.11)

SW fittings are classified by pressure ratings, not PN/Class like flanges.

| Pressure Class | Max. Working Pressure (PSI) | Typical Applications |

| Class 3000     | ~750 PSI (51 bar)             | General process piping   |

| Class 6000     | ~1500 PSI (103 bar)           | High-pressure hydraulics |

| Class 9000     | ~2250 PSI (155 bar)           | Steam, critical systems  |

Key Points:

- Higher walls, stronger fittings.

- Class 3000 is most common for standard applications.

- Class 6000/9000 used in oil & gas, power plants.

 3. Material Range (Common Standards)

| Material Type       | ASTM Standard | Common Grades |

| Carbon Steel        | ASTM A105         | A105 (Forged)     |

| Stainless Steel     | ASTM A182         | F304, F316, F321  |

| Alloy Steel         | ASTM A182         | F11, F22, F91     |

| Low-Temp Carbon Steel | ASTM A350        | LF2, LF3          |

 4. Comparison with Threaded & Butt-Weld Fittings

| Feature       | Socket-Weld (SW) | Threaded (NPT) | Butt-Weld (BW) |

| Size Range    | ⅛" – 4"             | ⅛" – 12"           | ½" – 48"+           |

| Max Pressure  | Up to 9000#         | Up to 3000#        | Unlimited (ASME B16.9) |

| Leak Resistance | Excellent (welded) | Moderate (sealant needed) | Best (full penetration weld) |

| Installation Ease | Moderate (welding skill needed) | Easiest (screw-on) | Most complex (precise welding) |

| Cost         | Medium              | Lowest             | Highest (labor-intensive) |

 5. When to Use SW Fittings?

✅ High-pressure, small-bore systems (hydraulics, steam).

✅ Vibration-prone areas (better than threaded).

✅ Where space is limited (compact vs. BW flanges).

❌ Avoid for:

   - Large pipes (NPS > 4").

   - Systems requiring frequent disassembly (use threaded/unions).

   - Highly corrosive fluids (unless using SS grades).

 Conclusion

- Standard SW fitting range: ⅛" to 4", with Class 3000, 6000, 9000 pressure ratings.

- Most common materials: A105 (CS), A182 (SS), A350 (low-temp).

- Best for: High-pressure, small-diameter piping where threaded fittings are weak and BW is impractical.
