Copper-Nickel Alloy Tubing for Marine & Ship-building Works

Request a quote
description

Copper-Nickel Alloy Tubing for Marine & Ship-building Works

1. Popular Standards

l GB/T26291             MIL-T-16420K(SH)                  ASTM B167/167M

DIN86019              EN/BS2871                         EEMUA144/234

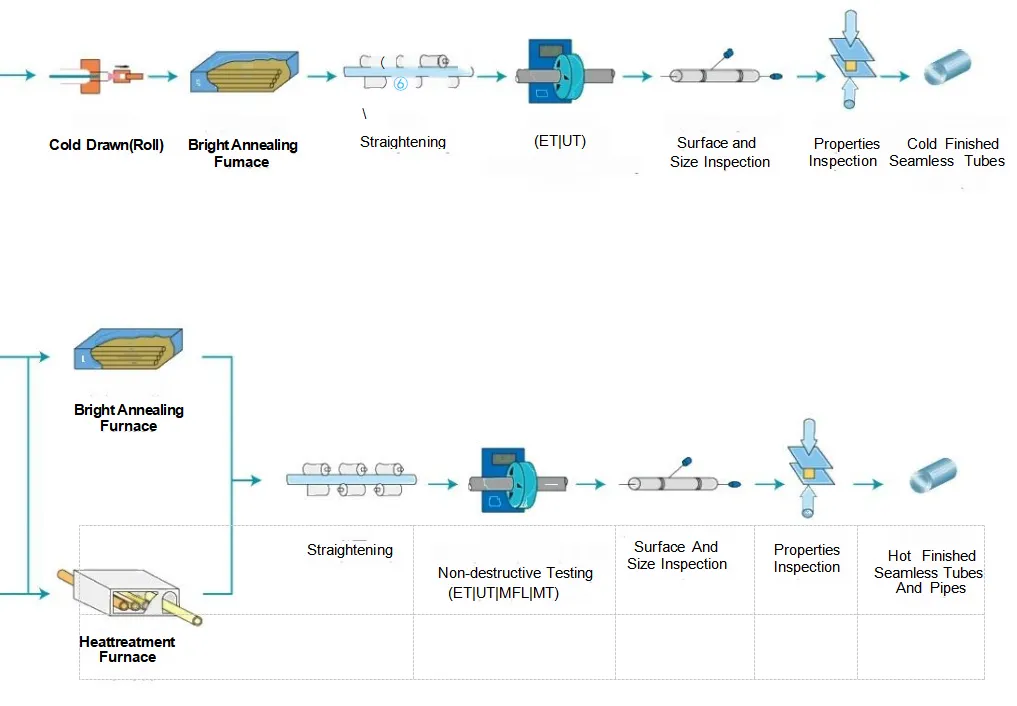

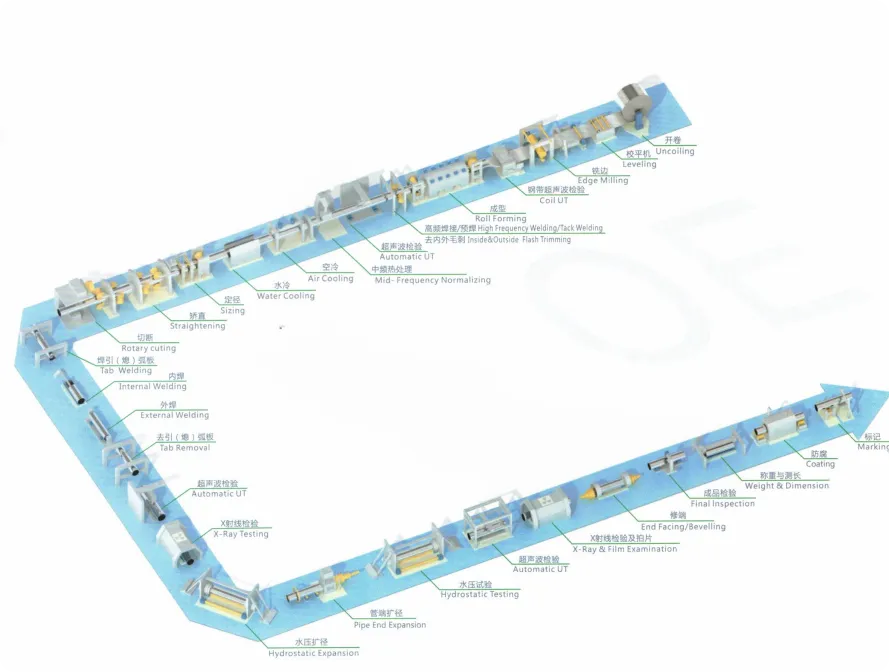

2. Process Flowchart

Seamless Pipe

Welded Pipe

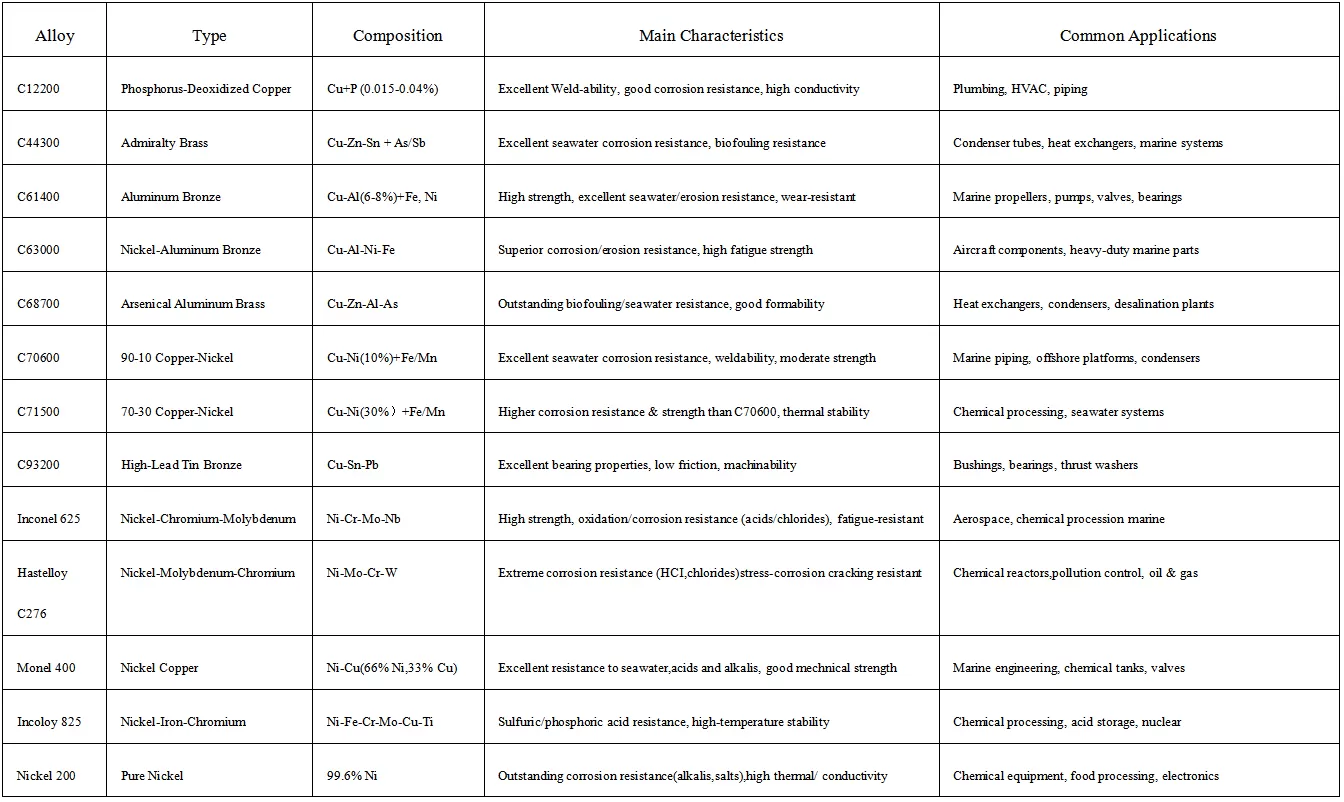

3. Popular Industrial Copper and Nickel Alloy Materials

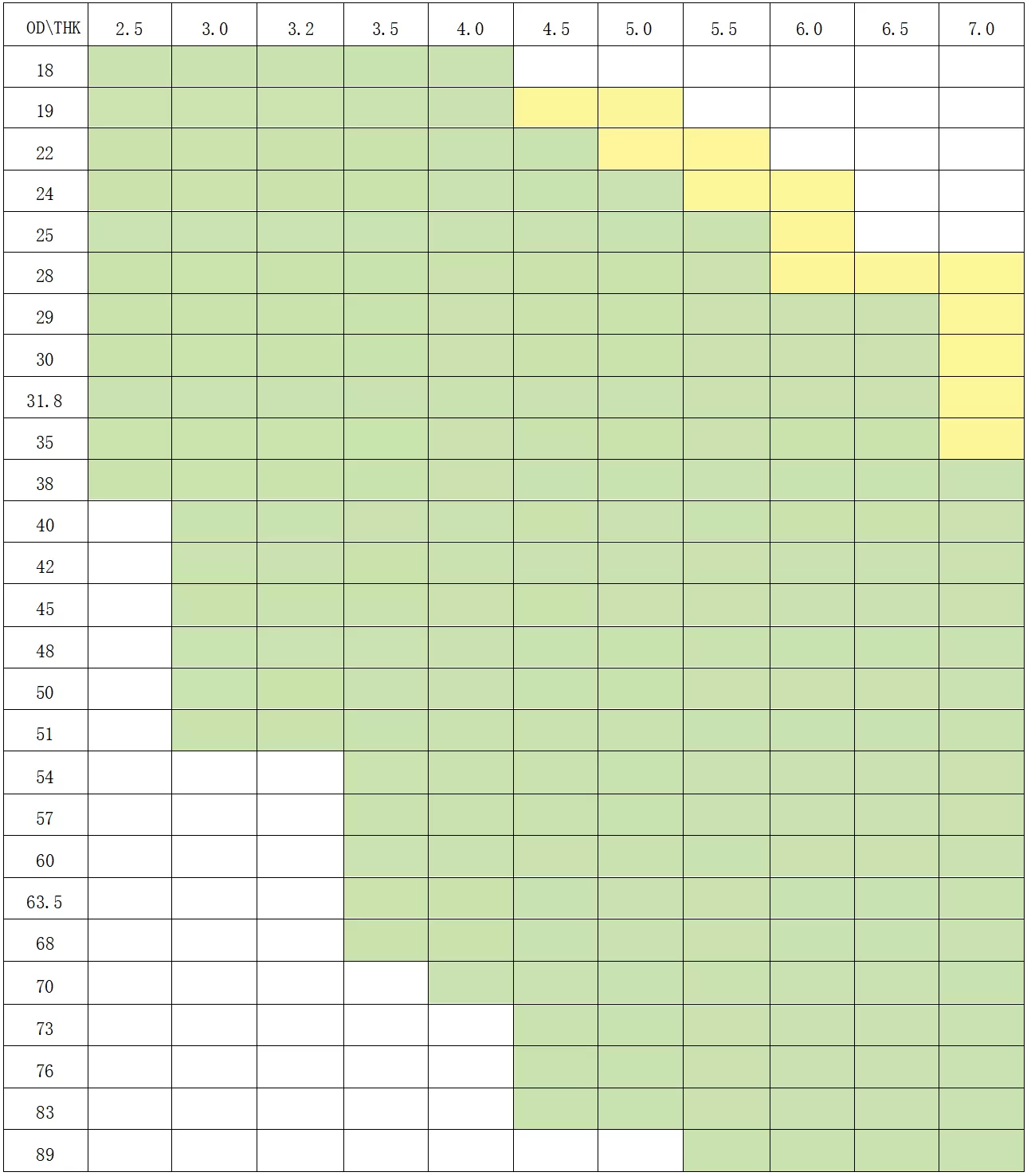

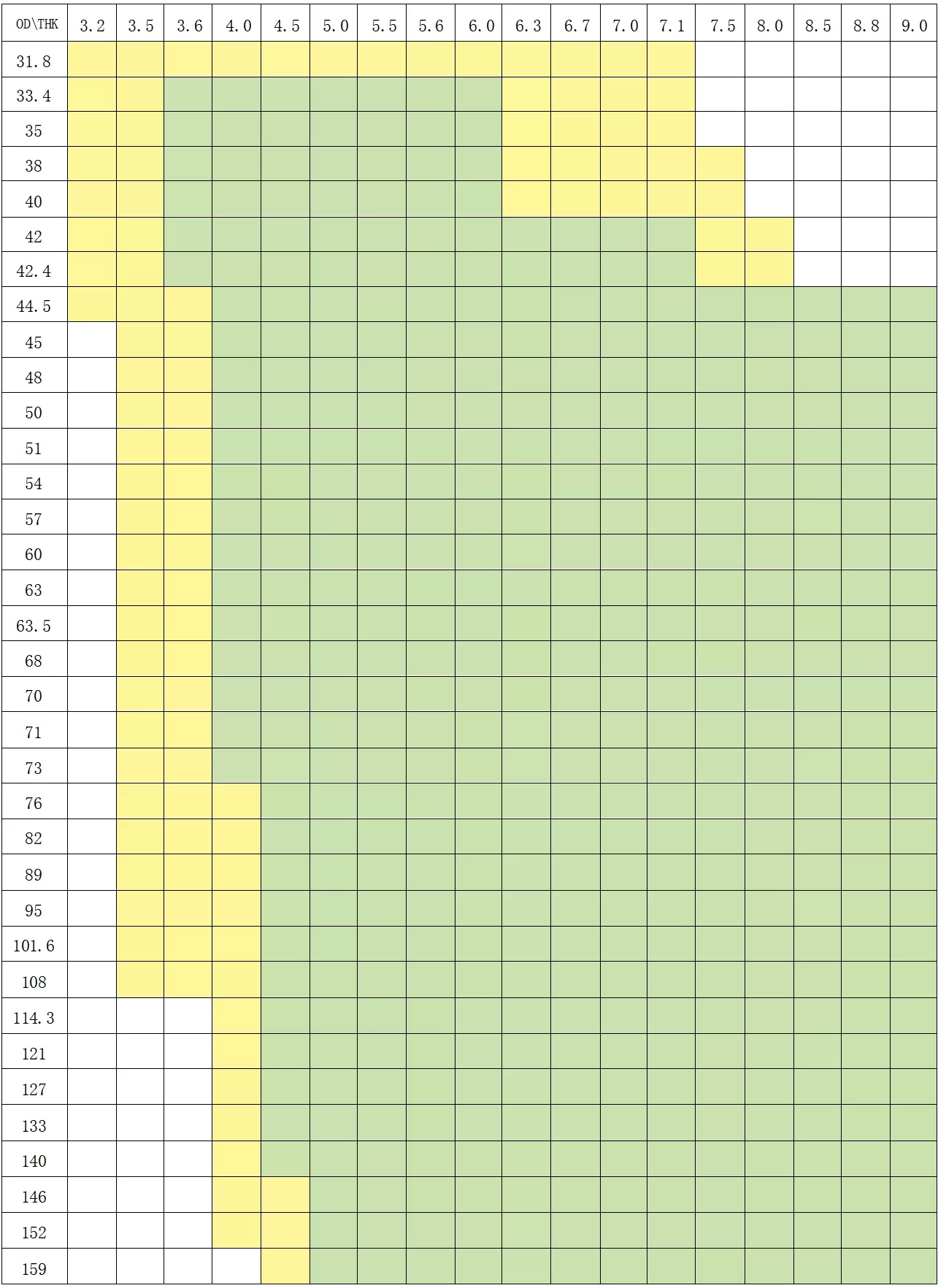

4. Cold Finished  (Cold-drawn or Cold-rolled) Seamless Tube Sizes Available

Table 01 Unit: MM

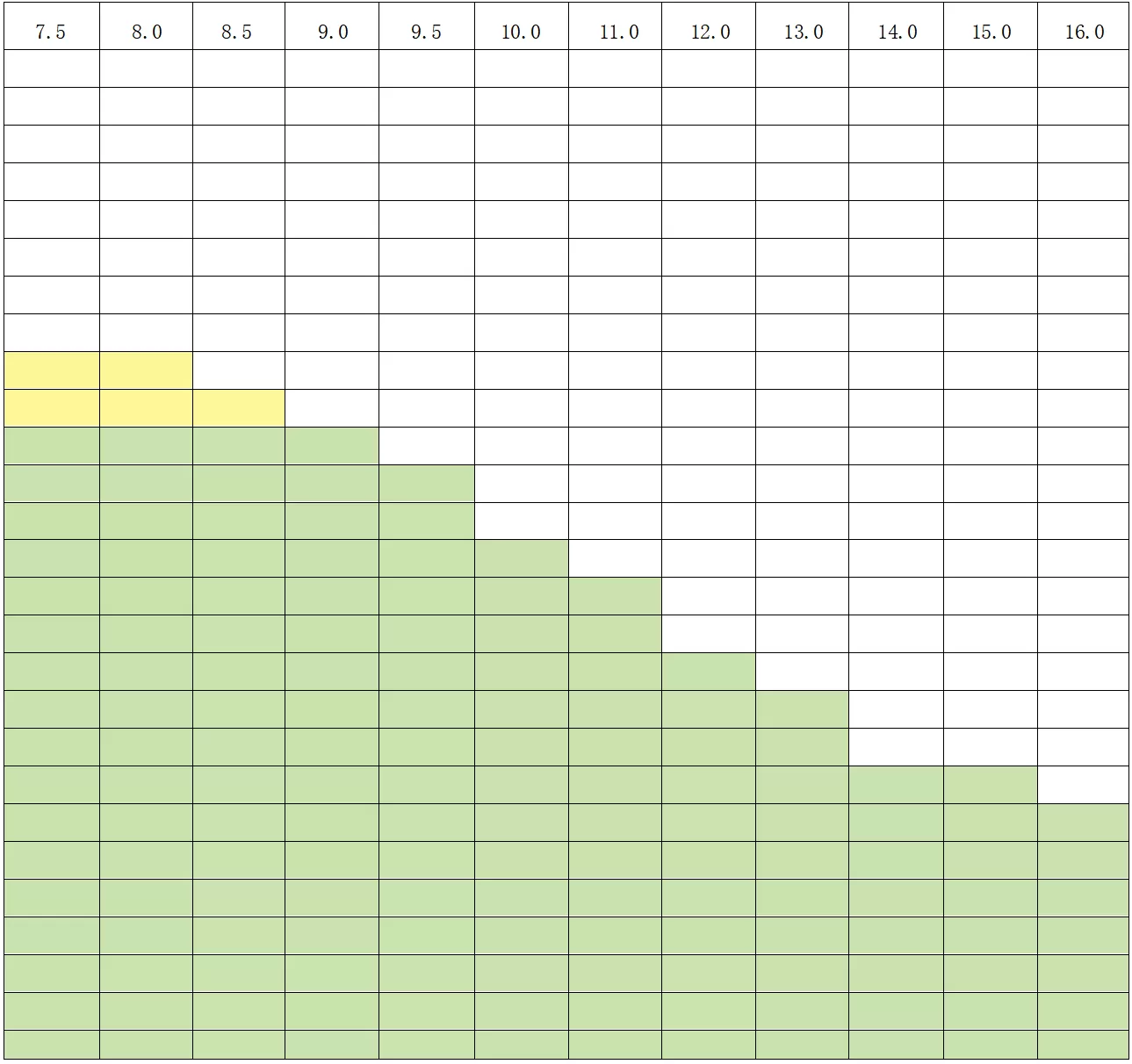

Table to be continued:

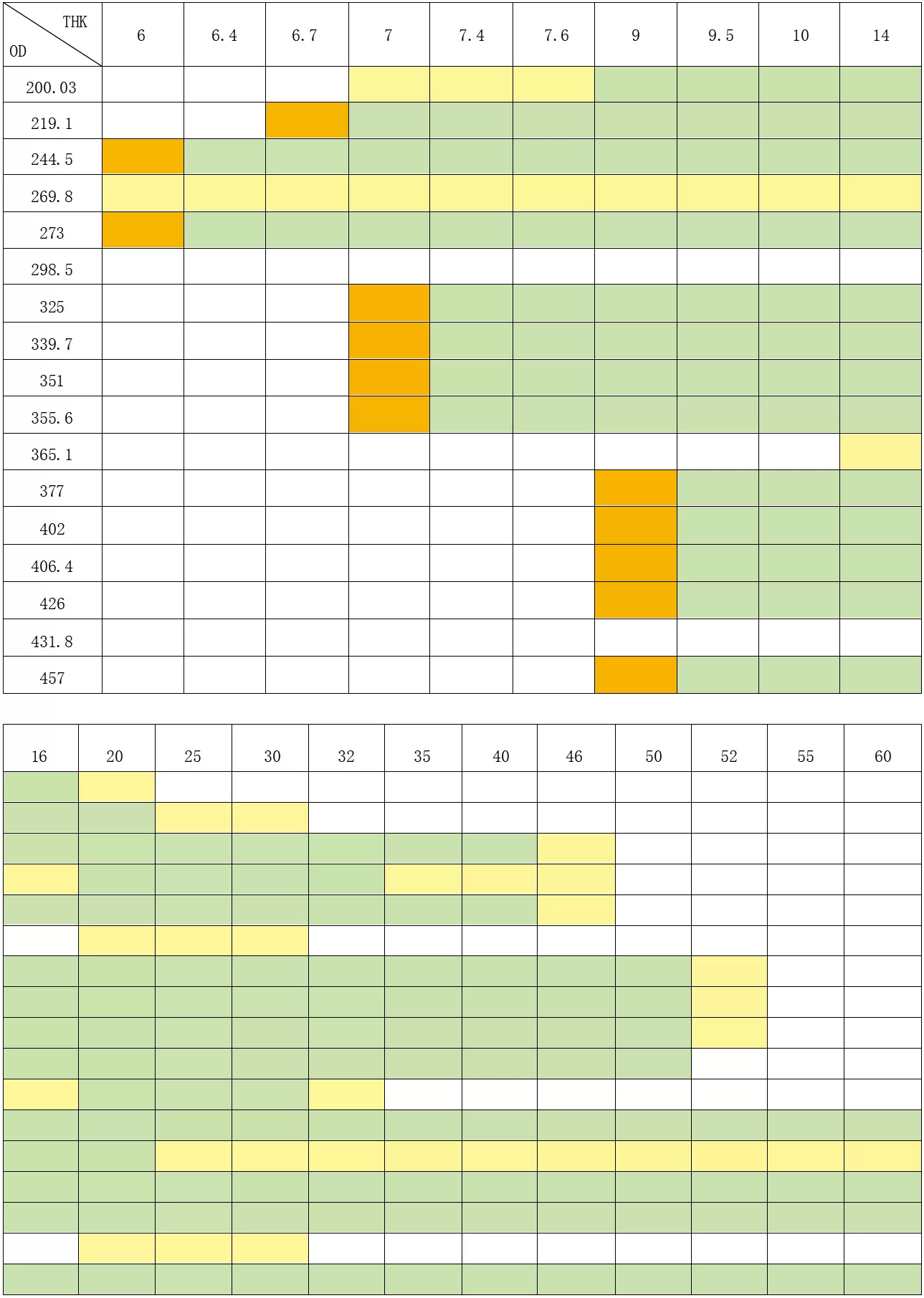

5. Hot Finished Seamless Pipe Sizes Available

Table 02  Unit: MM

Table 03 Unit: MM

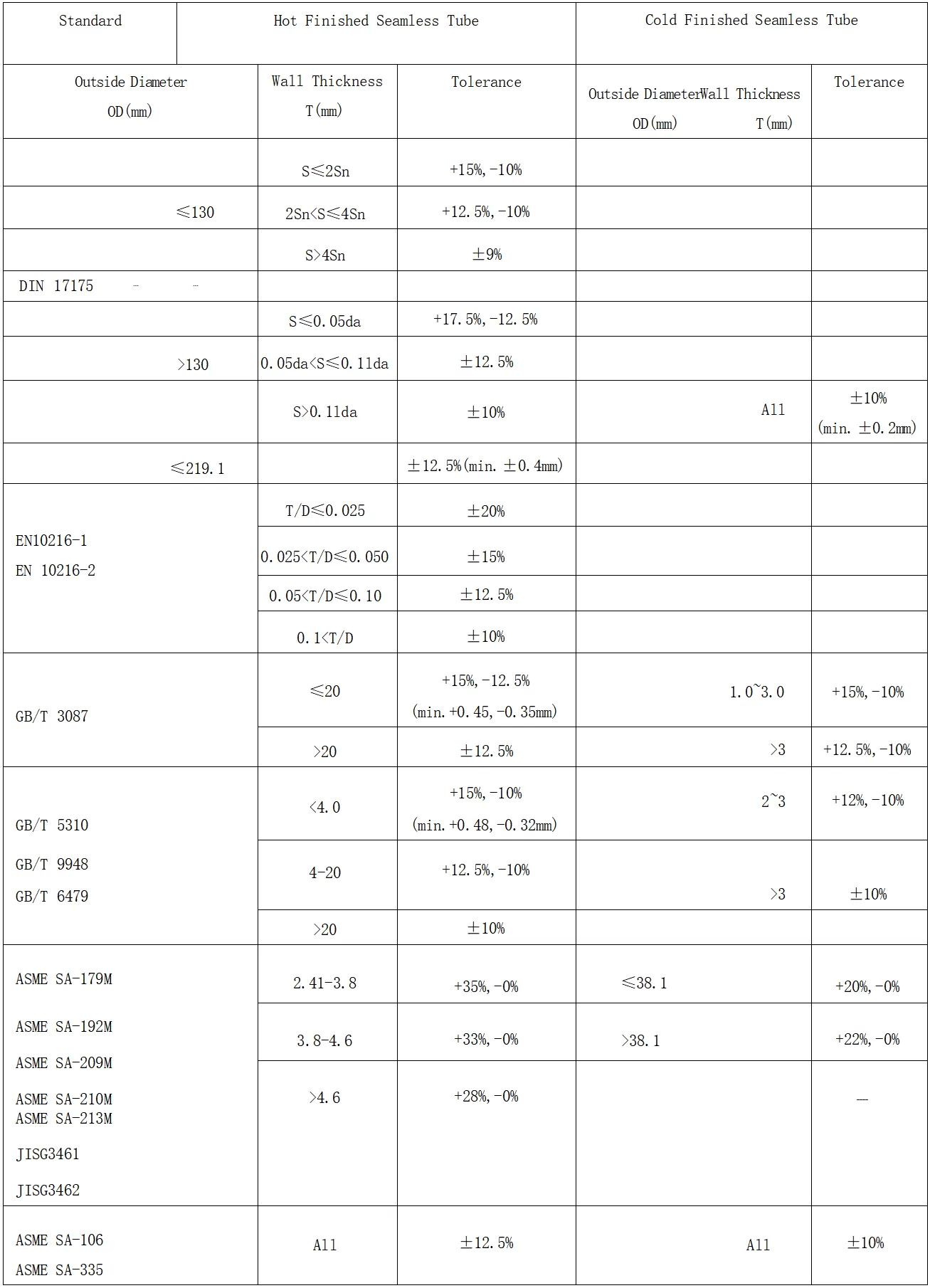

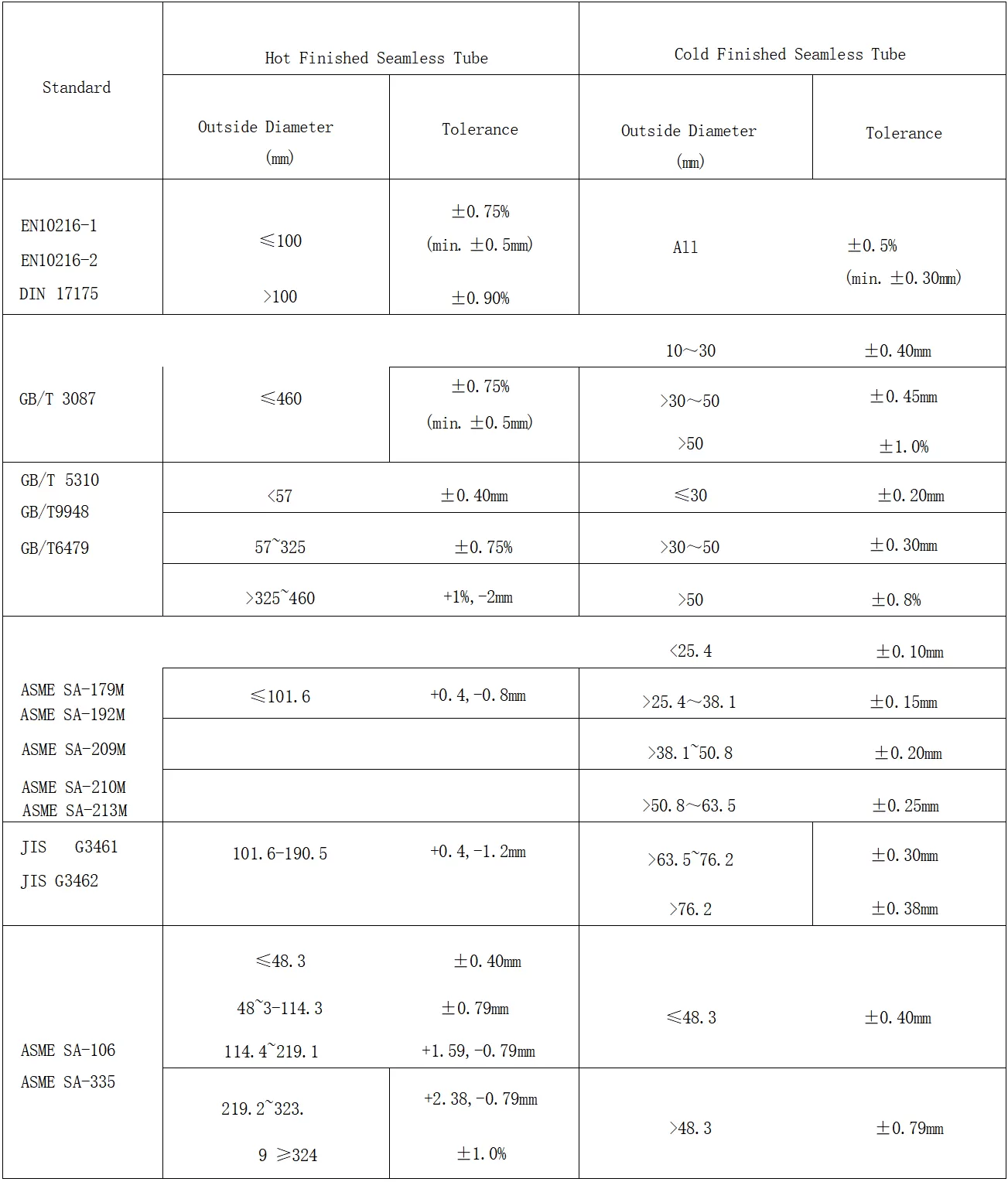

6. Tolerance on Dimensions

Table 04 Tolerance on Out Diameter  Unit: MM


Table 05  Tolerance on Wall Thickness  Unit: MM


For more details on specific carbon and alloy steel tubing and pipes, please refer to the specific product details or contact us at your convenience.



×
